Dell OptiPlex 7460 - Back Cover; Removing the Back Cover

2 Follow the procedure in After working inside your computer
Back cover
Removing the back cover
1 Follow the procedure in Before working inside your computer.
2 Remove the Stand.

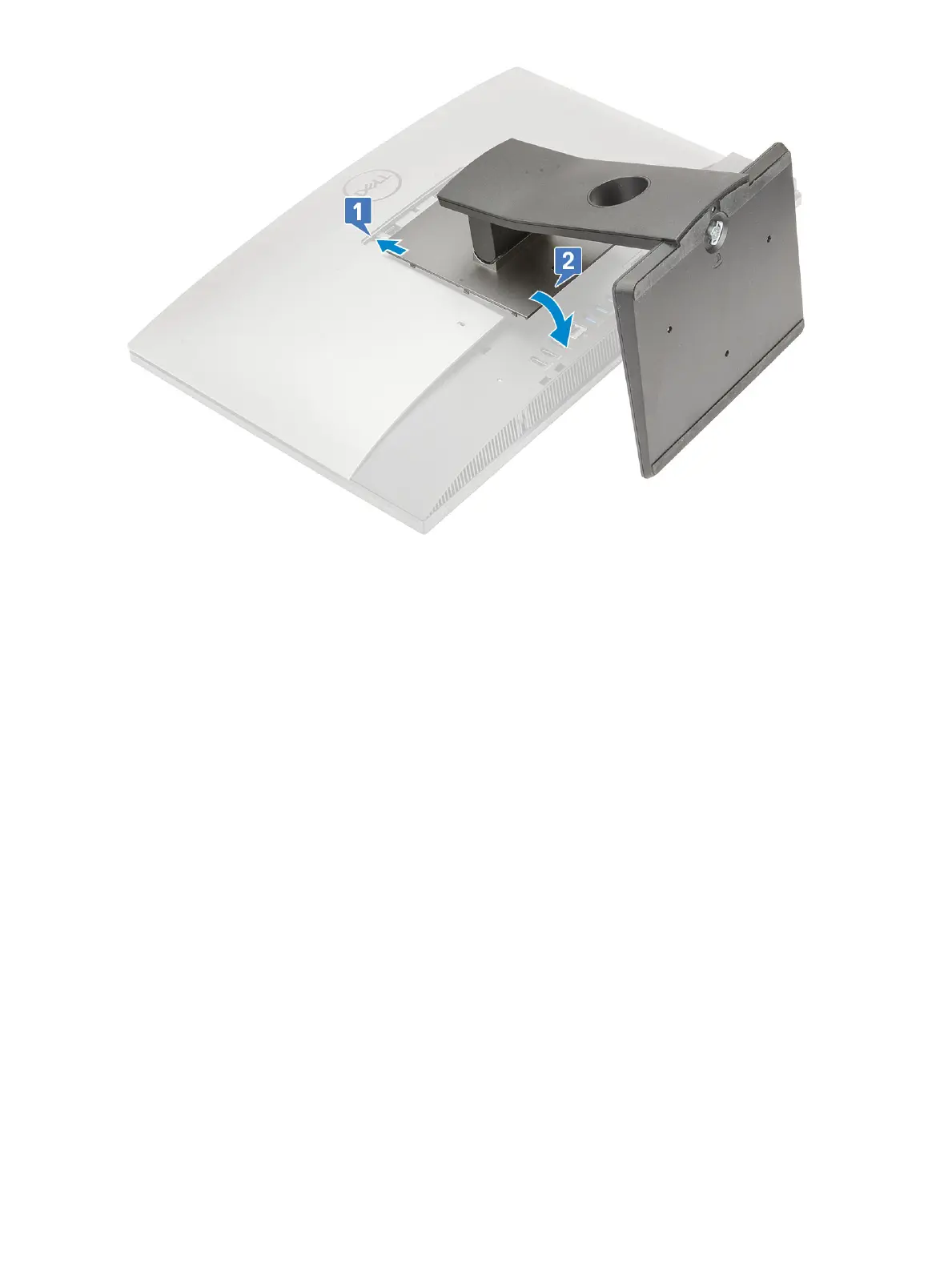

3 Press and hold the tab on the back cover to release it from the latch on the system-board shield and slide the back cover in the
direction shown to release it from the middle frame [1].
4 Lift the back cover from the middle frame and the system-board shield [2].
Removing and Installing components
23
