5 Lift the middle frame o the display assembly base [1].
Installing the middle frame

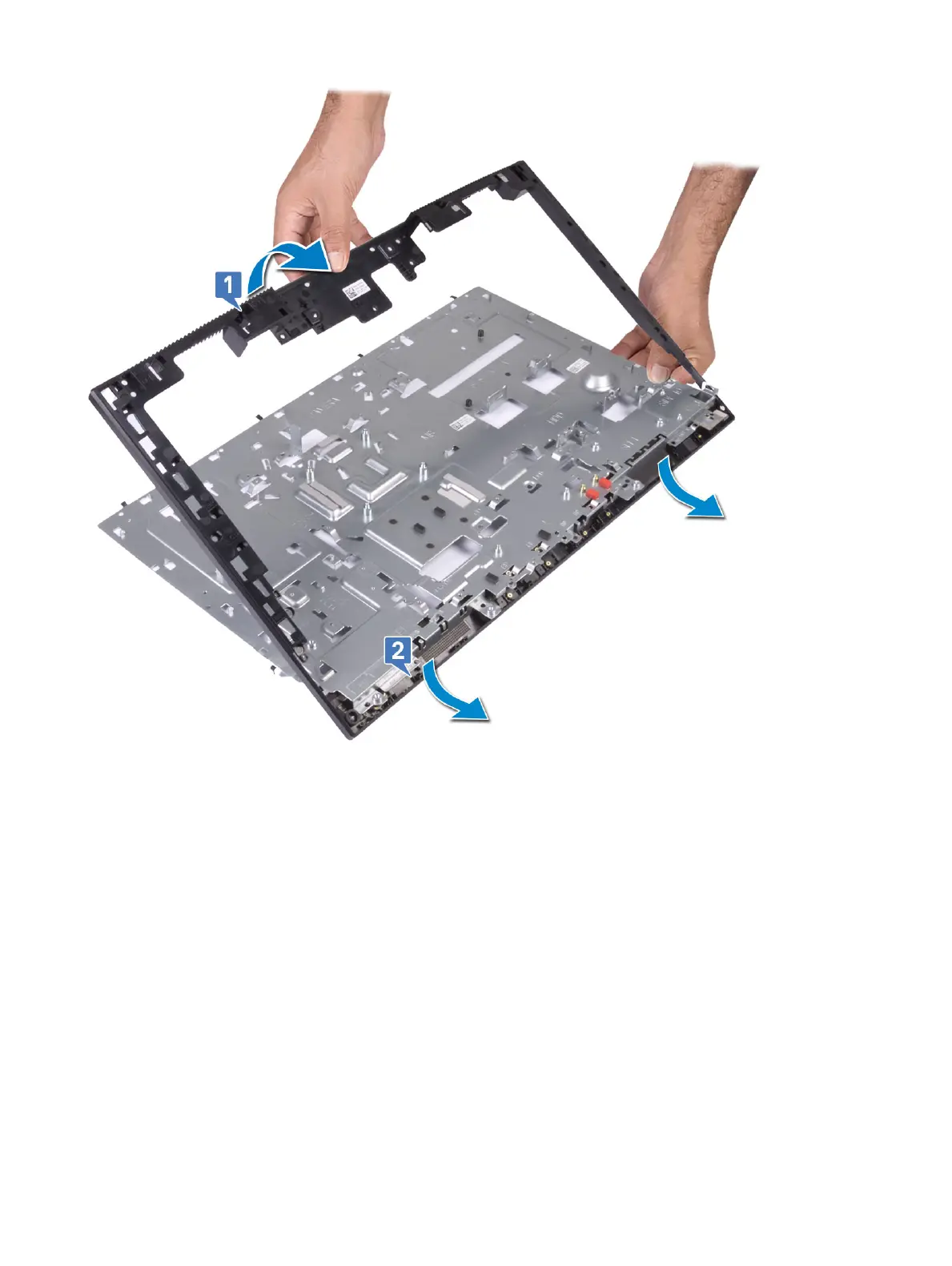

1 Starting from the location shown, slide and align the middle frame to the slots on the display assembly base, and then snap the middle
frame into place on the display assembly base [1,2].
Removing and Installing components
93
