Installing the pop-up camera
1 Follow the procedure in After working inside your computer.
2 To replace the camera module:

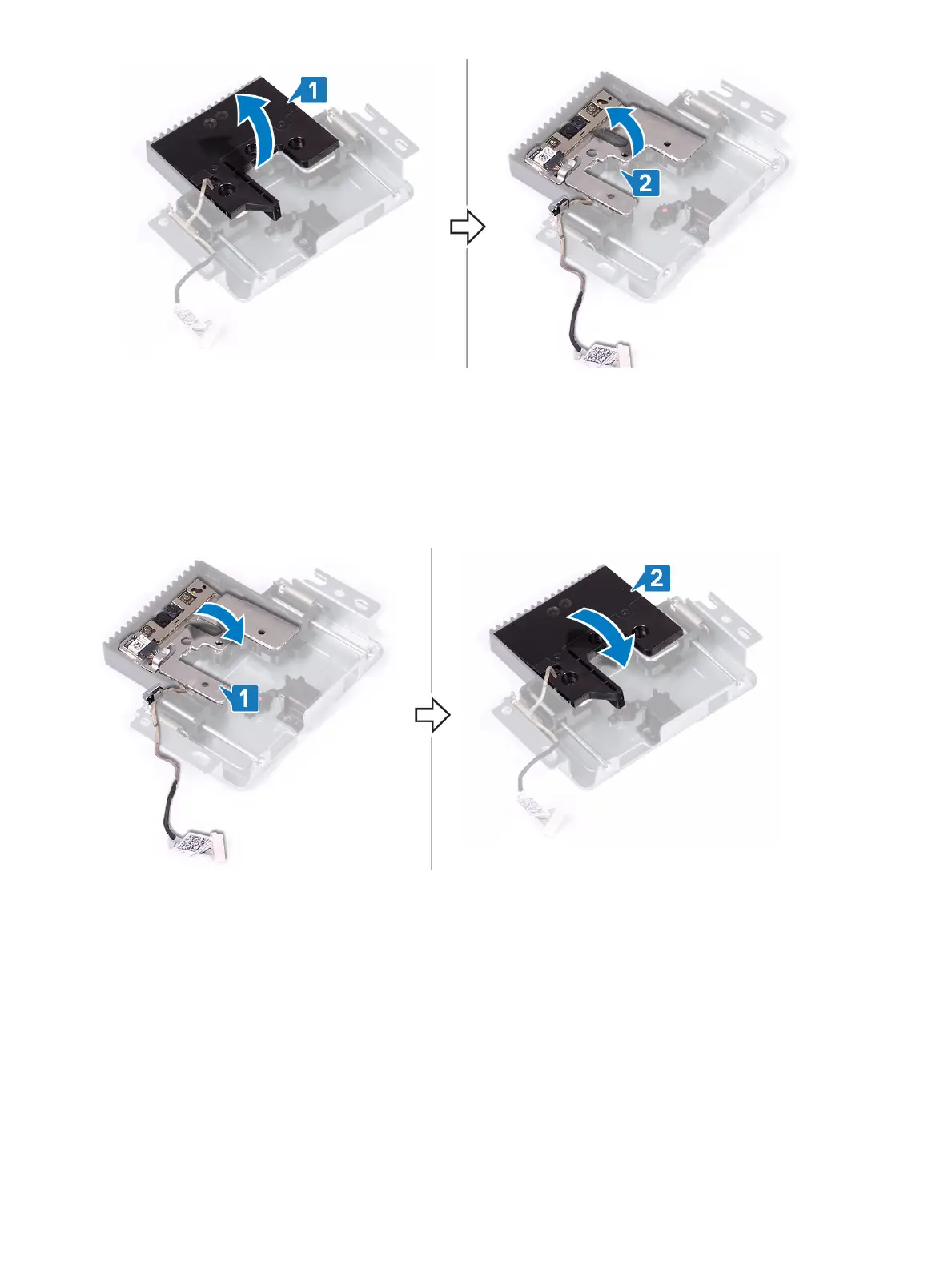

a Replace the camera module along with the camera cable in the slot on the pop-up camera assembly [1].
b Align the screw slots on the pop-up camera bezel with the screw slots on the pop-up camera assembly [2].
3 To replace the camera bezel:
a Replace the three screws (M3) that secure the pop-up camera bezel to the pop-up camera assembly [1].
b To retract the pop-up camera, press the top of the pop-up camera assembly [2].
Removing and Installing components
43
