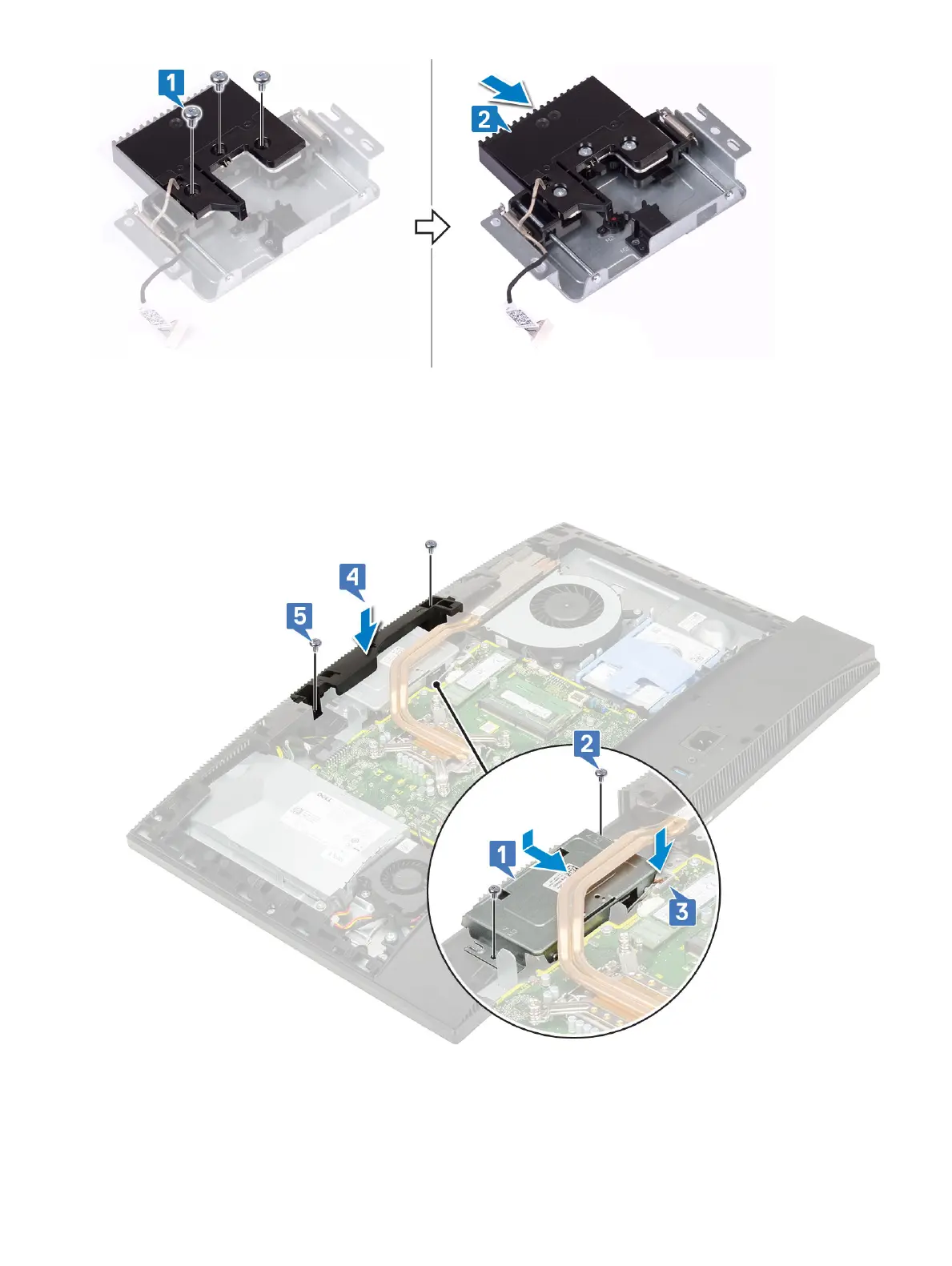

4 To replace the camera assembly:
a Align and place the pop-up camera assembly on the display panel base and route the camera cable through to the routing
channel [1].
b Replace the two screws (M3) that secure the pop-up camera assembly to the middle frame [2].
c Connect the camera cable to the system board [3].
d Align and place the pop-up camera assembly cover on the middle frame [4].
e Replace the two screws (M3) that secure the camera assembly cover to the middle frame [5].
5 Install the following components:
a System board shield
b Back cover
c Stand
44
