Dell OptiPlex 7460 - Cable Cover - Optional; Removing the Cable Cover

2 Follow the procedure in After working inside your computer
Cable cover - optional
Removing the cable cover
1 Follow the procedure in Before working inside your computer.

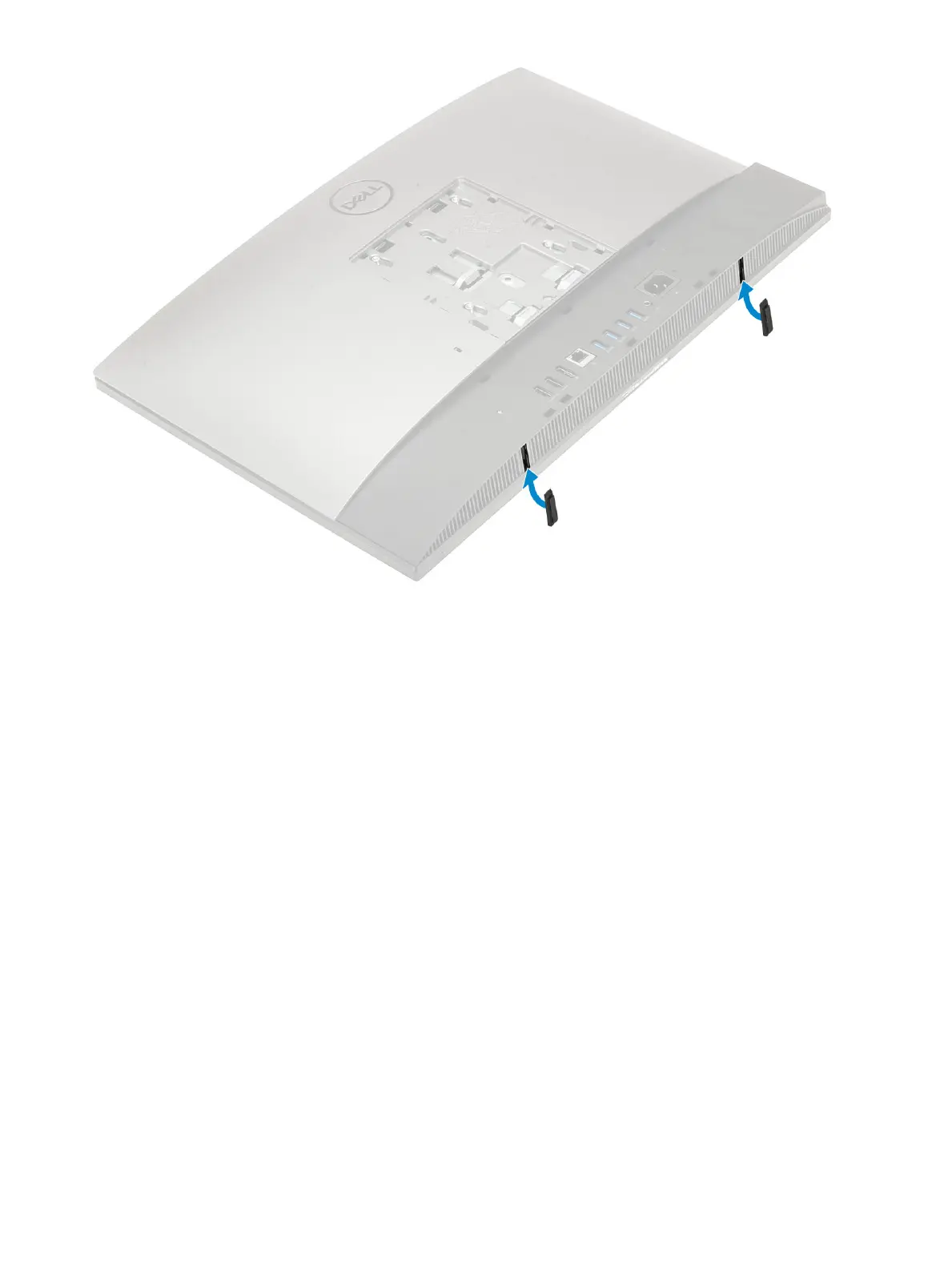

2 Remove the single (M3x5) screw that secures the cable cover to the base cover [1].
3 Lift the cable cover o the base cover [2].
Removing and Installing components
19
