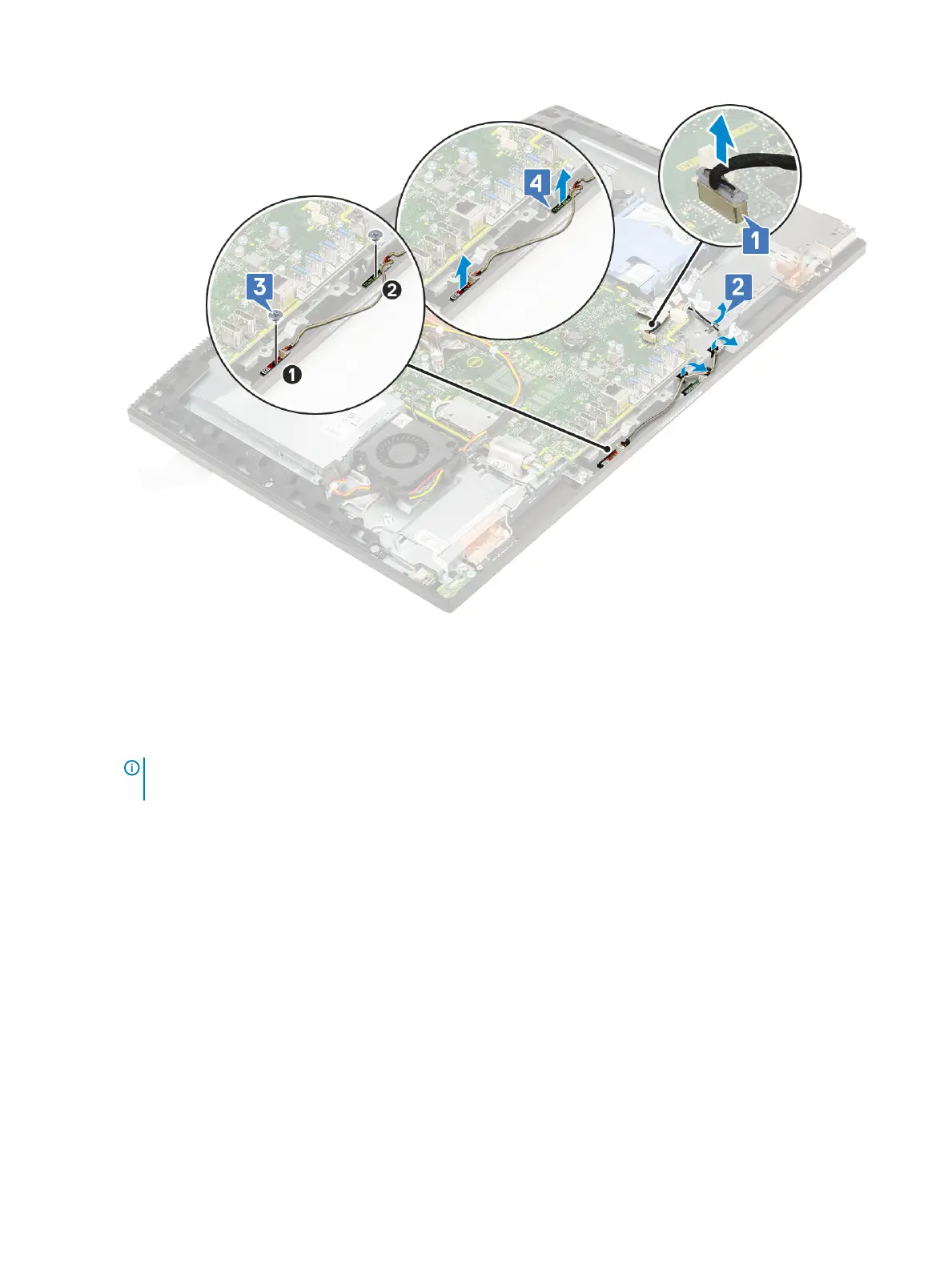

c Remove the two screws (M2x2.5) that secure the microphone modules (2) to the middle frame [3].
d Lift the microphone modules o the slots on the middle frame [5].
Installing the microphones
1 To install the microphone and cable:
a Align and place the microphone modules (2) to the slots on the middle frame.
NOTE
: Match the numbers on the microphone modules to the numbers on the middle frame while placing the
microphone modules on the middle frame.
b Replace the two screws (M2x2.5) that secure the microphone modules to the middle frame [2].
c Route the microphone module cable through the routing guides on the display assembly base [3].
d Connect the microphones module cable to the socket on the system board [4].
76
Removing and Installing components
