Removing the heat sink - dGPU
1
NOTE
: Perform the following steps to remove heat sink for discrete graphics processing unit (dGPU).
Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
d System fan

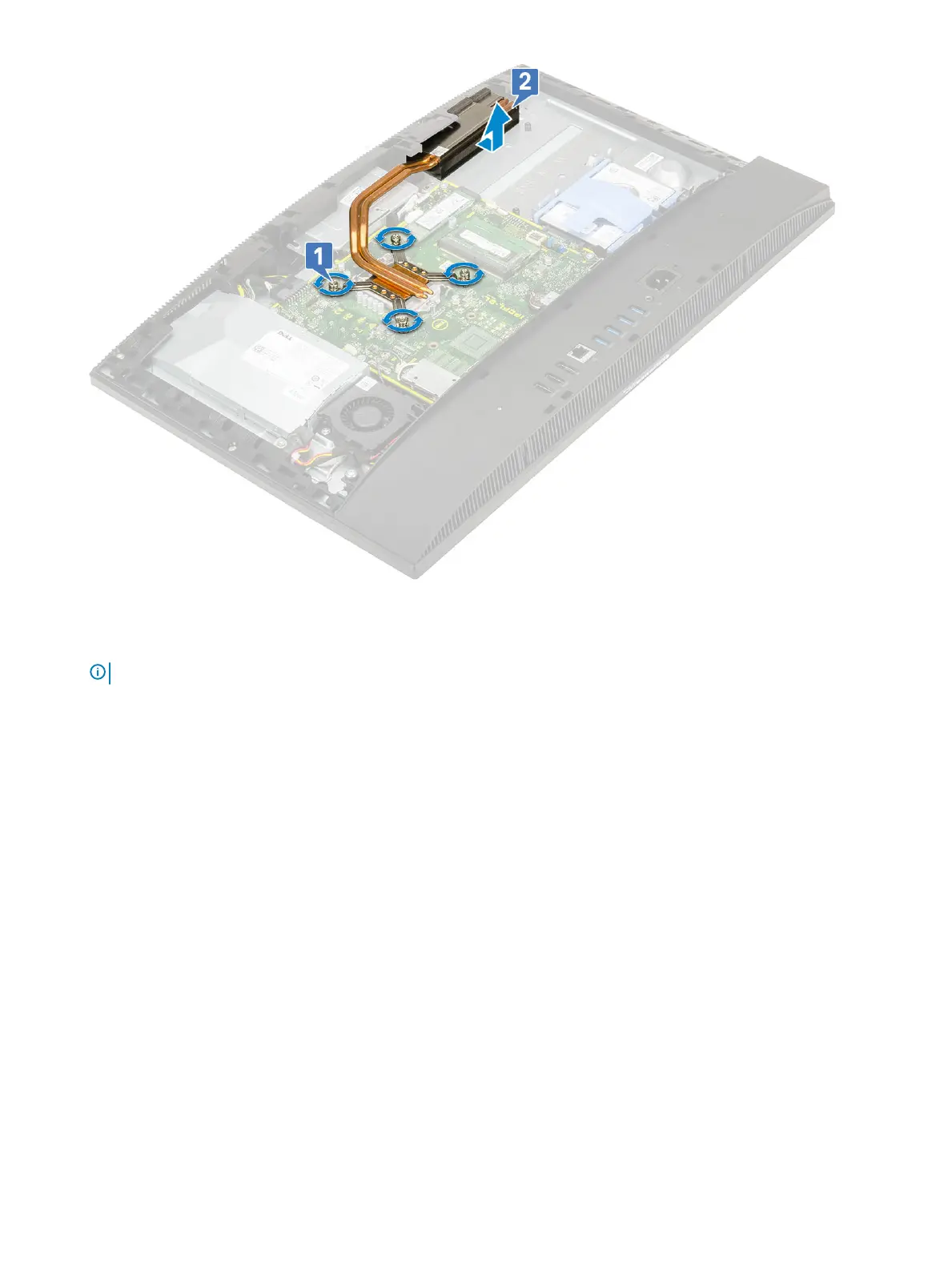

3 In the reverse order (as indicated on the heat sink), loosen the nine captive screws that secure the heat sink to the system board and
display assembly base [1].
4 Lift the heat sink o the system board and display assembly base [2].
Removing and Installing components
47
