Dell OptiPlex 7460 - Page 88

4 Place the display assembly base on a clean and at surface with the display panel facing down.

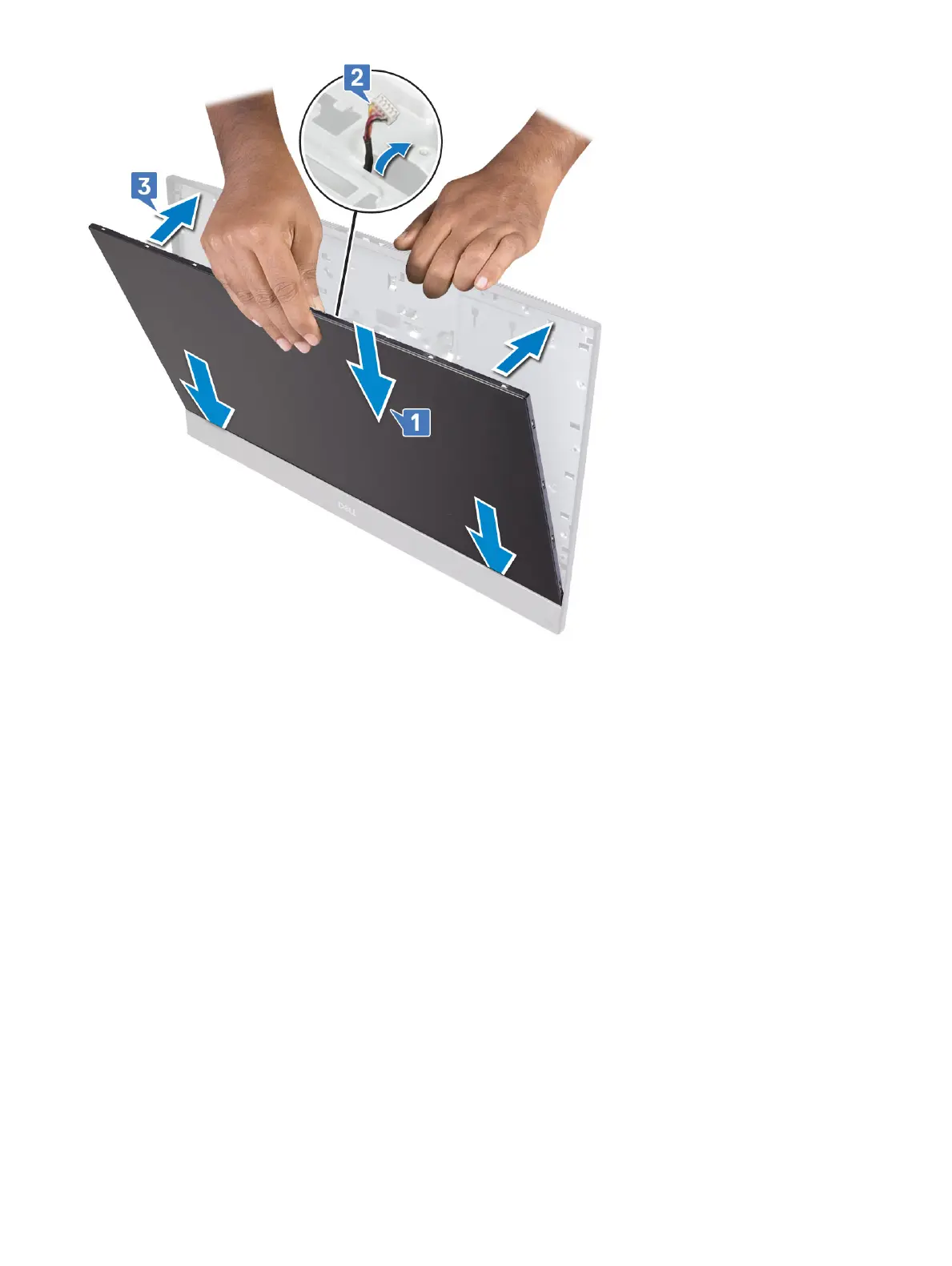

5 Replace the 11 (M3x5) screws that secure the display panel to the middle frame and display assembly base [1] .
6 Route the display backlit cable through the routing guides on the display assembly base [2] .
88
Removing and Installing components
