3 Install the following components:
a System fan
b System board shield
c Back cover
d Stand
4 Follow the procedure in After working inside your computer.
Installing the heat sink - dGPU
1
NOTE
: Perform the following steps to install heat sink for discrete graphics processing unit (dGPU).

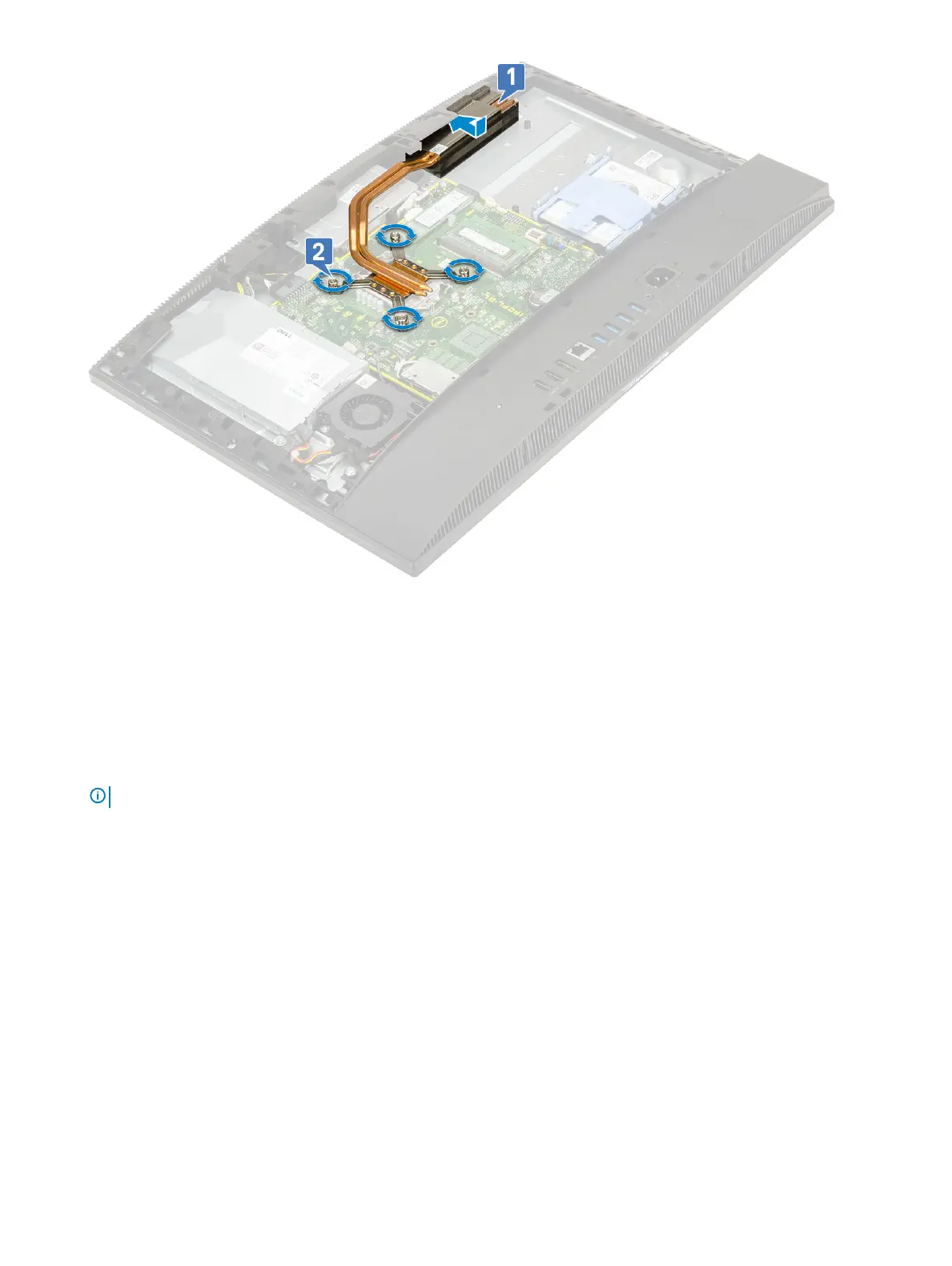

Align the captive screws on the heat sink with the screw slots on the system board and the display assembly base [1].
2 In the sequential order (as indicated on the heat sink), tighten the captive screws that secure the heat sink to the system board and
display assembly base [2].
Removing and Installing components
49
