Dell OptiPlex 7460 - Page 56

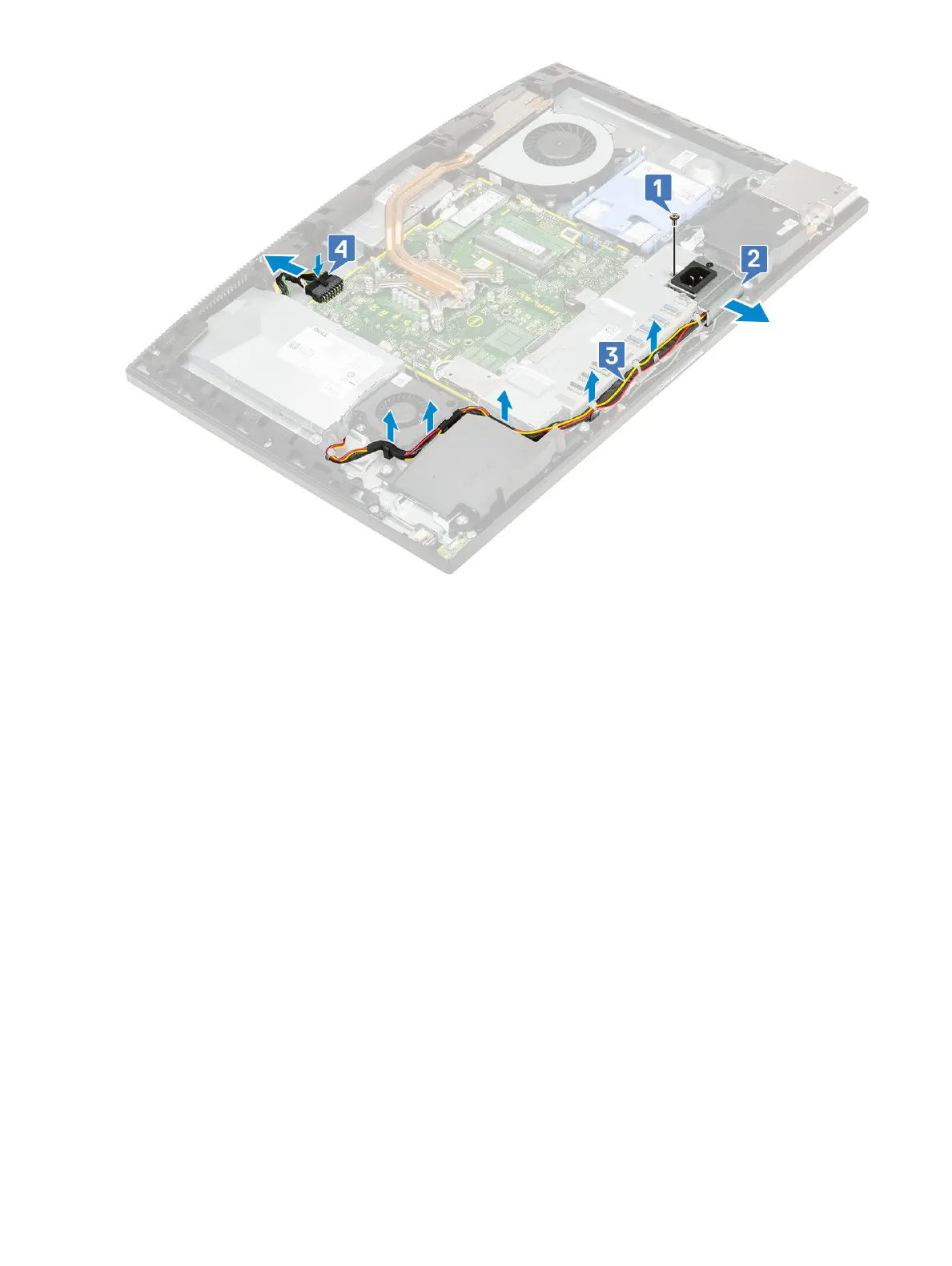

4 To remove the PSU:
a Remove the single (M3x5) screw that secures the PSU to the display assembly base [1].
b Slide the PSU, and lift it away from the chassis [2].
56
Removing and Installing components
