Dell OptiPlex 7460 - Page 64

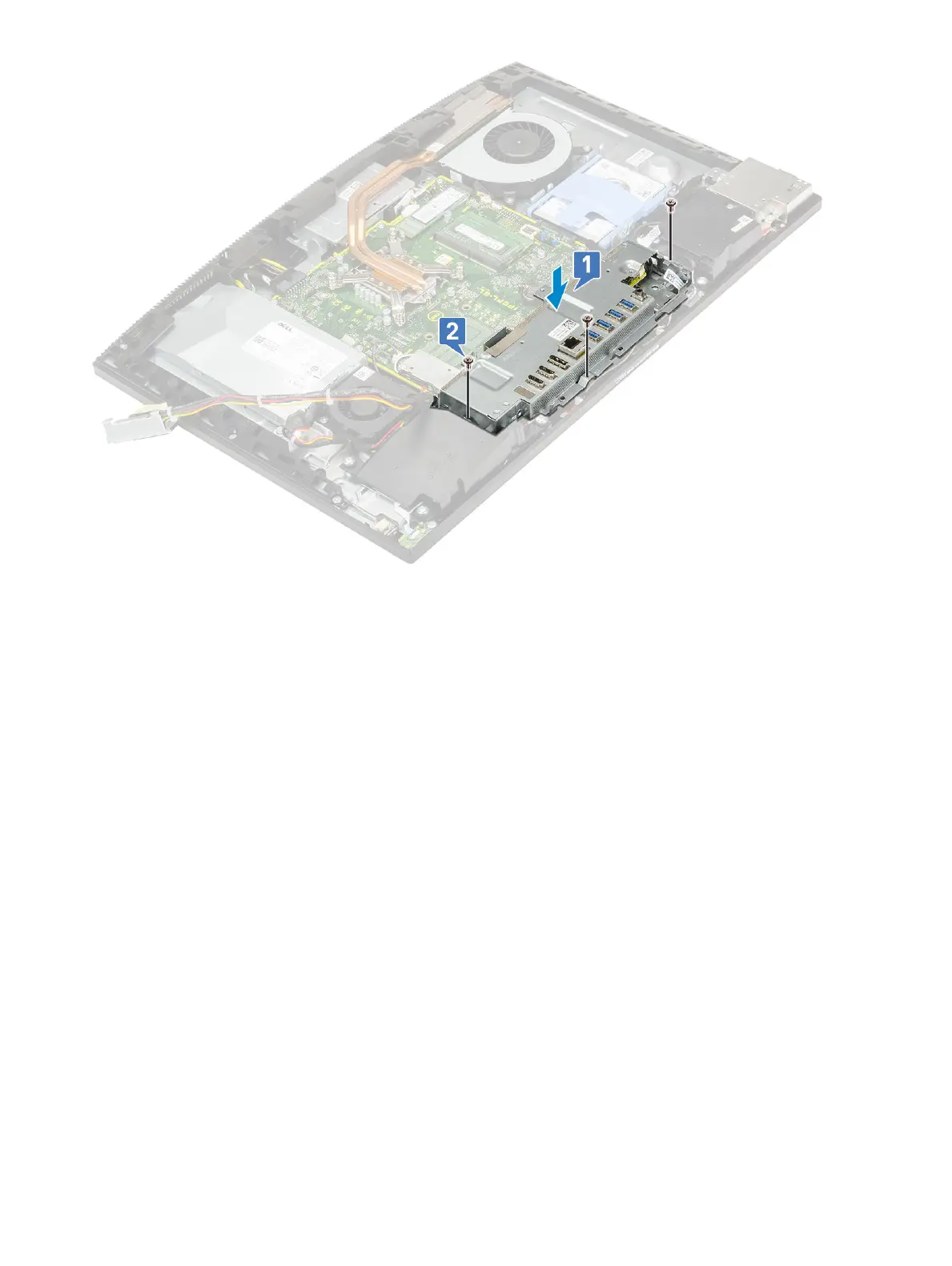

3 To install the PSU cable:
a Route back the power supply cables through the retention clips in the chassis [1].
b Slide and replace the power supply socket on the chassis [2].
c Replace the single (M3x5) screw securing the power supply socket to the I/O bracket [3].
64
Removing and Installing components
