124 Configuring System Information

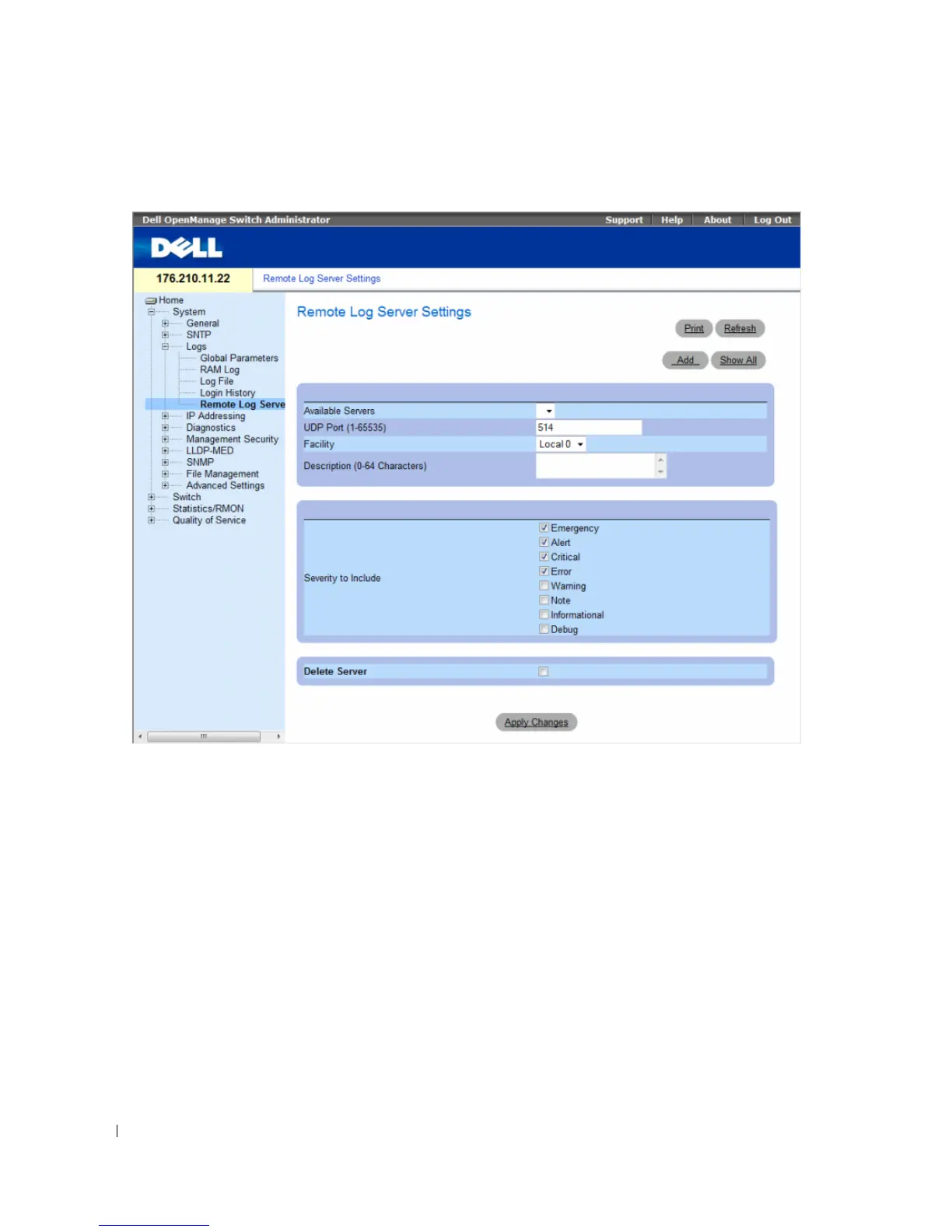

Figure 6-23. Remote Log Server Settings
The Remote Log Server Settings page contains the following fields:
•
Available Servers
— Contains a list of servers to which logs can be sent.
•
UDP Port (1-65535)
— The UDP port to which the logs are sent for the selected server. The possible
range is 1 - 65535. The default value is 514.
•
Facility
— Defines a user-defined application from which system logs are sent to the remote server.
Only one facility can be assigned to a single server. If a second facility level is assigned, the first facility
level is overridden. All applications defined for a device utilize the same facility on a server. The field
default is Local 7. The possible field values are:
–
Local 0
to
Local 7.
•
Description (0-64 Characters)
— The user-defined server description.
