Dell PowerConnect 3524P

284 Configuring Switch Information
• CoS — Indicates the CoS values by which the packets are filtered.
•
Cos Mask — Indicates the CoS Mask by which the packets are filtered.
•
Ethertype — Indicates the Ethertype packet by which the packets are filtered.
•
Action — Indicates the ACL forwarding action. Possible field values are:
–
Permit — Forwards packets which meet the ACL criteria.
–
Deny — Drops packets which meet the ACL criteria.
–
Shutdown — Drops packet that meet the ACL criteria, and disables the port to which the packet
was addressed.
Adding ACEs to IP based ACLs
1 Open the Network Security - MAC Based ACL page.
2 Select an ACL.
3 Edit the relevant fields.
4 Click Apply Changes .
Adding MAC based ACLs
1 Open the MAC Based ACL page.:
2 Click Add .
The
Network Security - MAC Based ACL page opens.

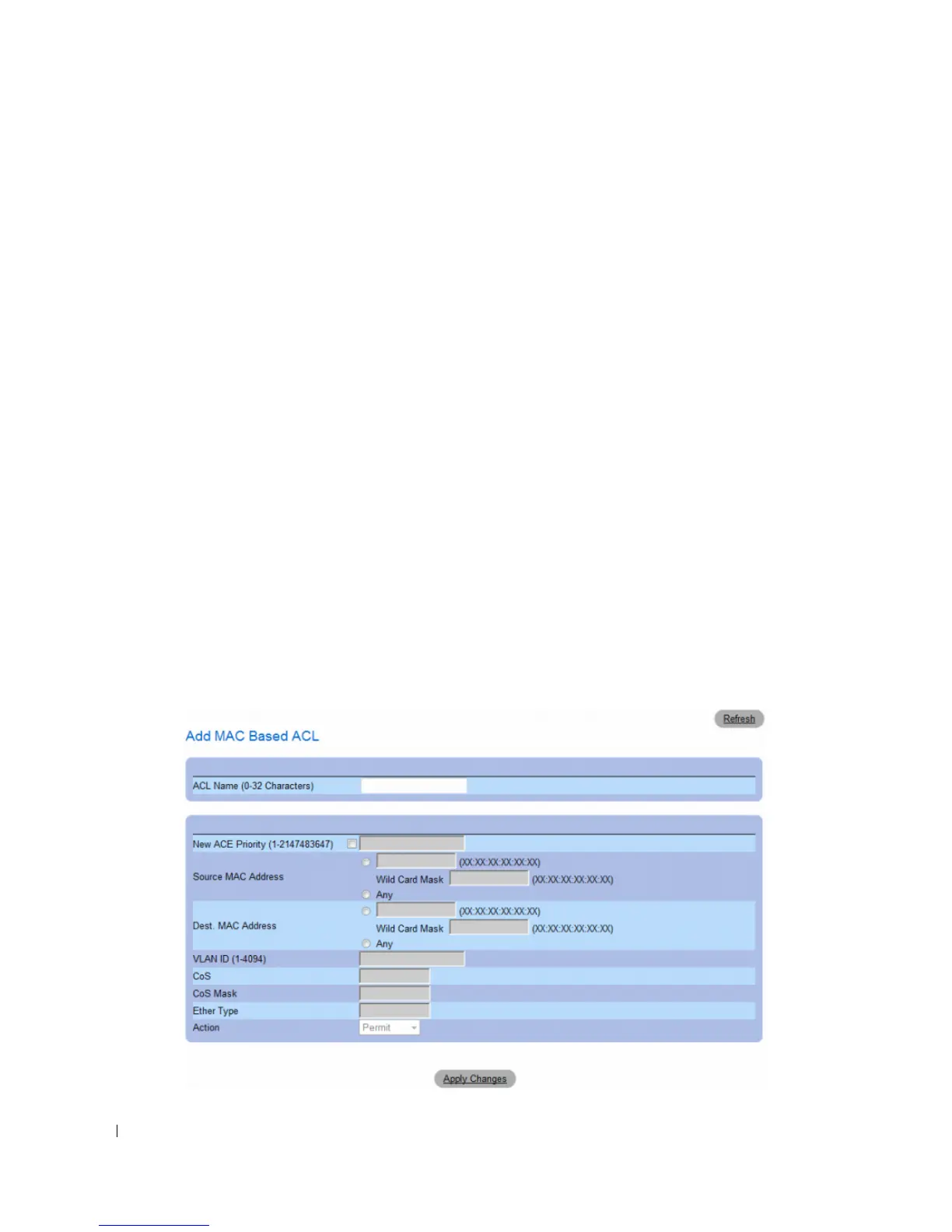

Figure 7-12. Add Mac Based ACL
