Dell PowerConnect 3524P

Configuring Switch Information 285
3 Define the relevant fields.
4 Click Apply Changes . The MAC based protocol is defined, and the device is updated.
Displaying the ACEs Associated with MAC based ACLs
1 Open the Network Security - MAC Based ACL page.
2 Click Show All.

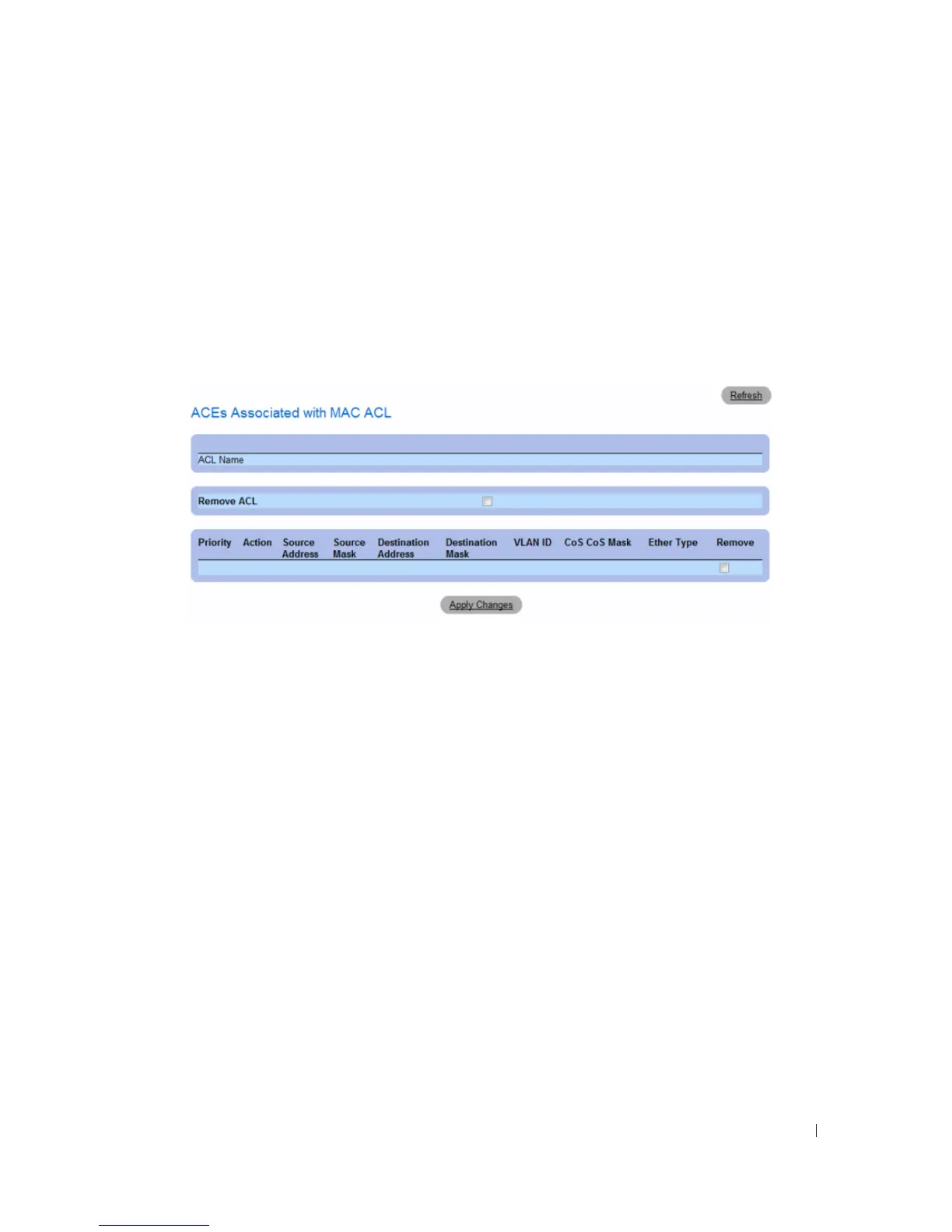

The ACEs Associated with MAC Based ACL opens.
Removing a MAC based ACL
1 Open the Network Security - MAC Based ACL page.
2 Click Show All. The ACEs Associated with MAC-ACL Table opens.
3 Check the Remove ACL checkbox.
4 Click Apply Changes .
Removing a MAC based ACE
1 Open the Network Security - MAC Based ACL page.
2 Click Show All. The ACEs Associated with MAC-ACL Table opens.
3 Check the Remove checkbox next to an ACE.
4 Click Apply Changes .
