Dell PowerConnect 3524P

Configuring Switch Information 353
• Authentication Not Required — Indicates whether unauthorized users can access a VLAN.
The possible field values are:
–
Enable — Enables unauthorized users to use a VLAN.
–
Disable — Prevents unauthorized users from using a VLAN.
•
Remove VLAN — Indicates whether to removes the VLAN from the VLAN Membership Table.
–
Checked — Removes the VLAN.
–
Unchecked — Maintains the VLAN in the VLAN Membership Table.
Adding New VLANs
1 Open the VLAN Membership page.
2 Click Add .
The
Create New VLAN page opens.

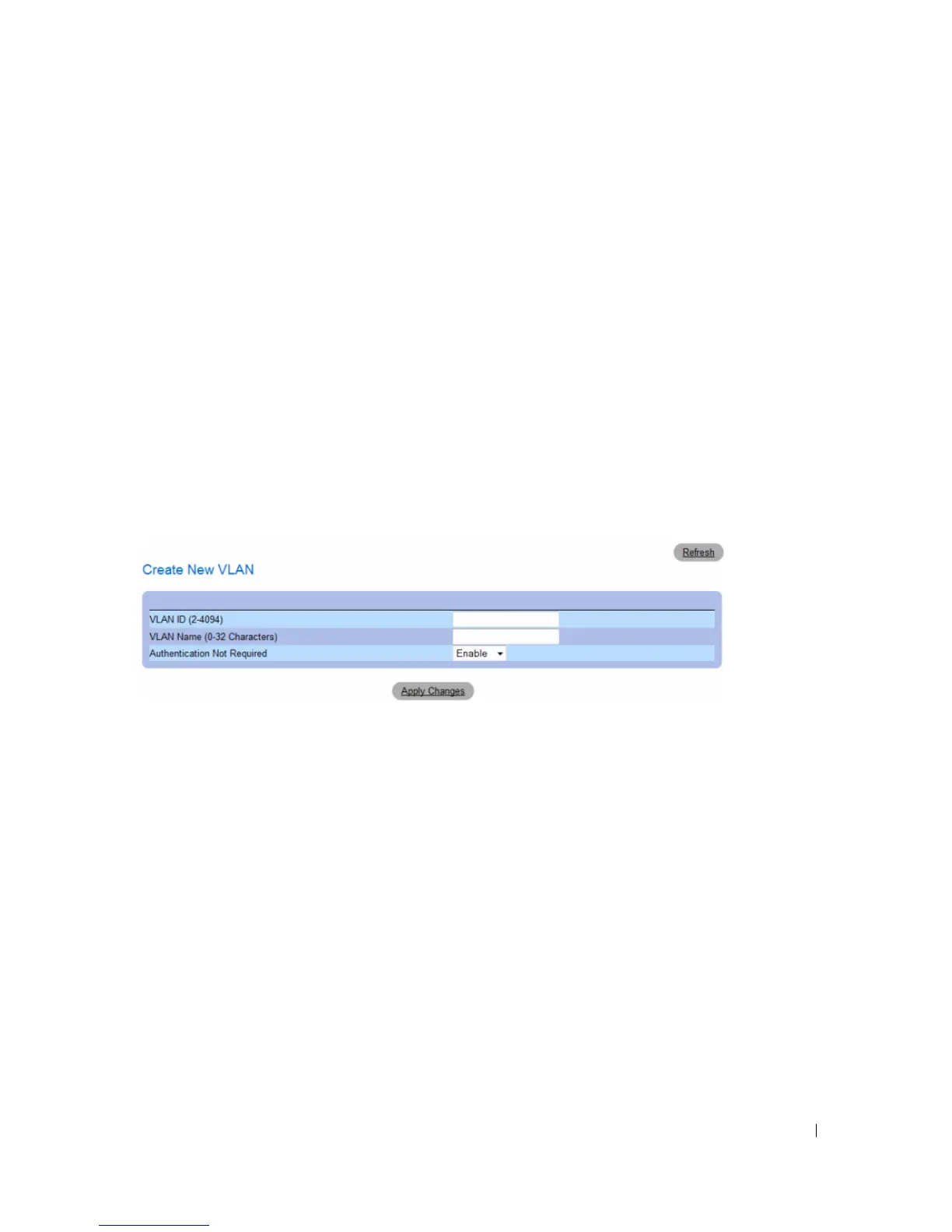

Figure 7-47. Create New VLAN
3 Enter the VLAN ID and name.
4 Click Apply Changes .
The new VLAN is added, and the device is updated.
Modifying VLAN Membership Groups
1 Open the VLAN Membership page.
2 Select a VLAN from the Show VLAN drop-down menu.
3 Modify the fields as desired.
4 Click Apply Changes .
The VLAN membership information is modified, and the device is updated.
