Configuring Switch Information 365

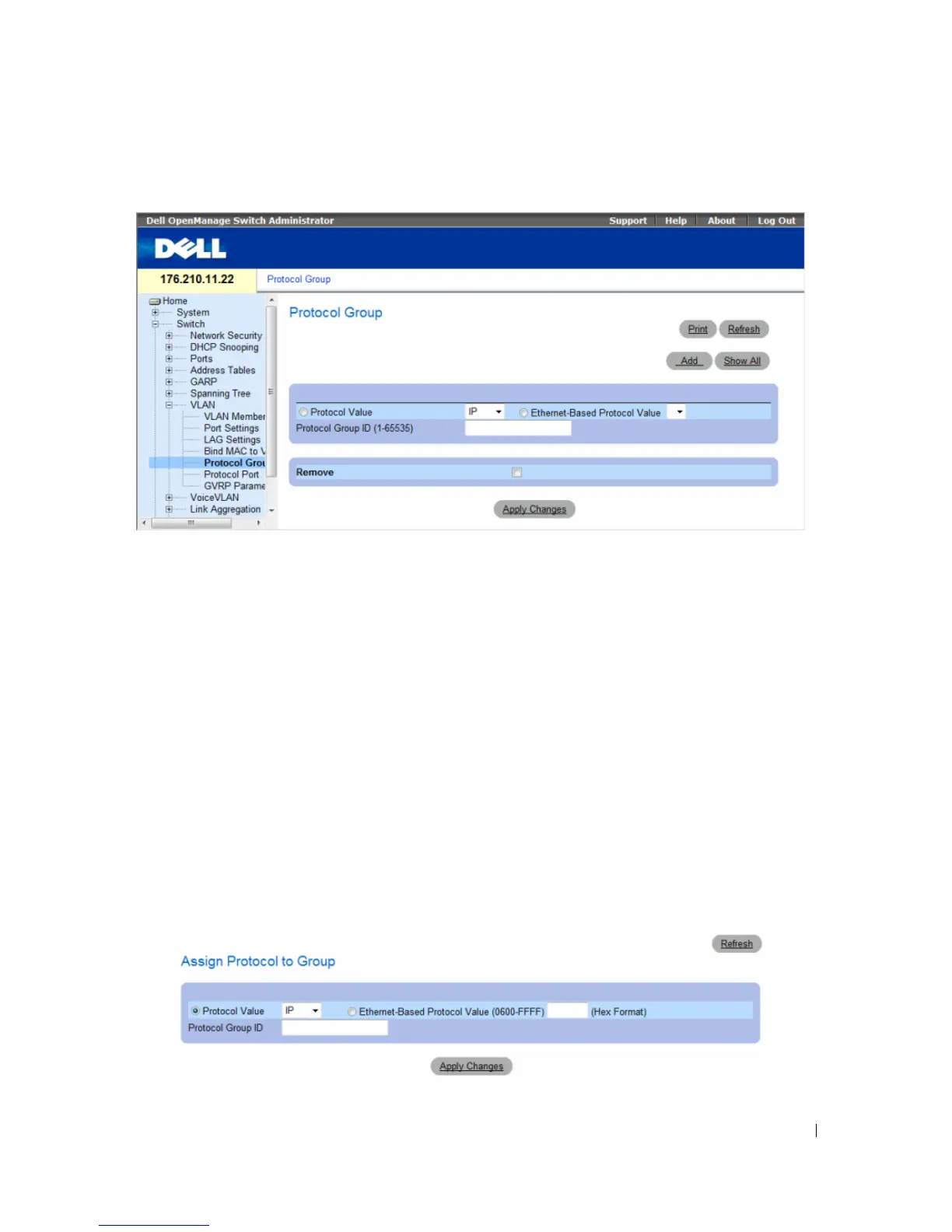

Figure 7-54. Protocol Group
• Protocol Value — Displays the User-defined protocol value. The options are as follows:
–
Protocol Value — User-defined protocol name. The possible field values are IP , IPX and ARP .
–
Ethernet-Based Protocol Value — The Ethernet protocol group type.
•
Protocol Group ID (1-65535) — The VLAN Group ID number.
•
Remove — Indicates whether to remove frame-to-protocol group mapping, if the protocol group to be
removed is not configured on this protocol port.
–
Checked — Removes the protocol group mapping.
–
Unchecked — Maintains the protocol group mapping.
Assigning a Protocol to a Group
1 Open the Protocol Group page.
2 Click Add.
The Assign Protocol To Group page opens.
Figure 7-55. Assign Protocol To Group
