Dell PowerConnect 5424

Configuring System Information 103

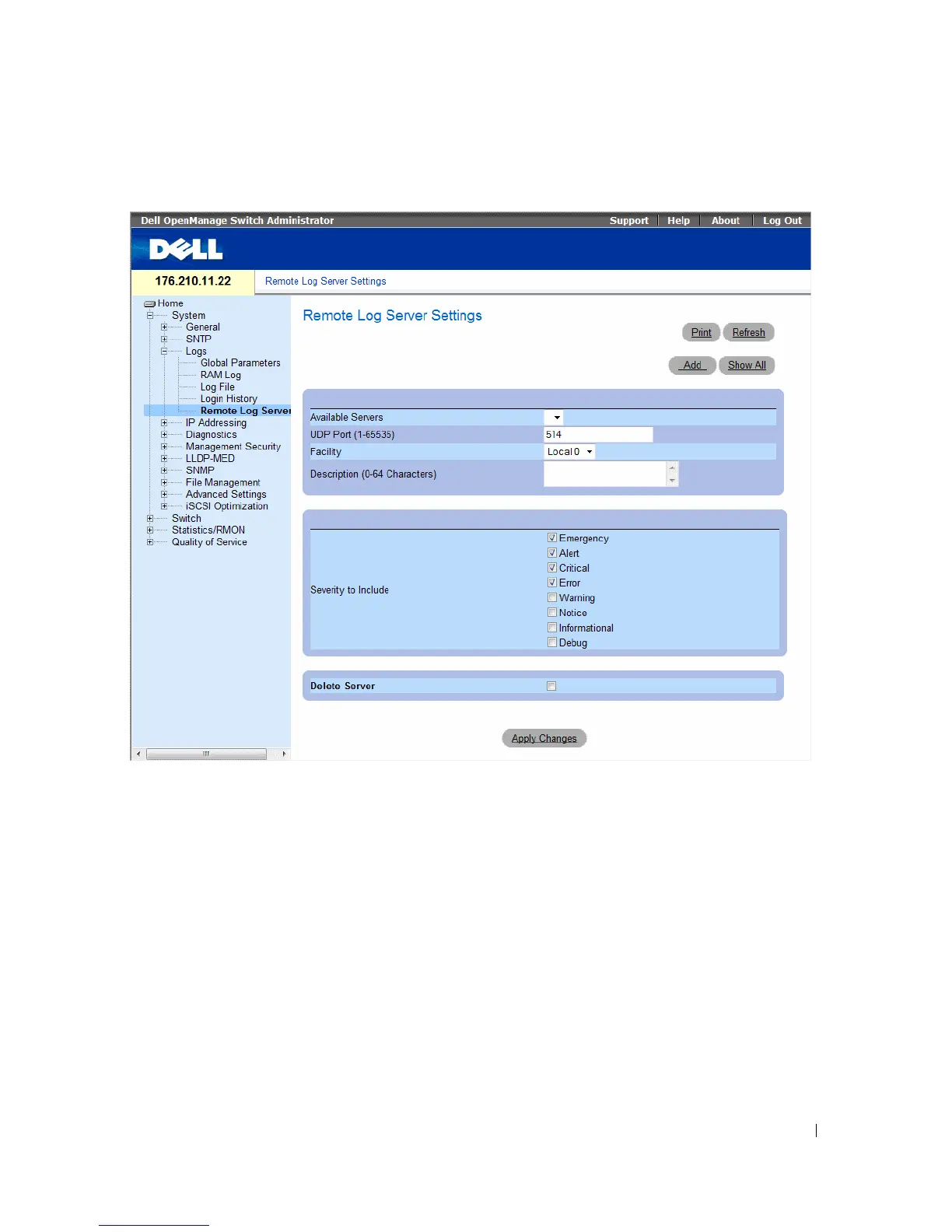

Figure 6-19. Remote Log Server Settings
• Available Servers — Contains a list of servers to which logs can be sent.
•
UDP Port (1-65535) — The UDP port to which the logs are sent for the selected server. The possible
range is 1 - 65535. The default value is 514.
•
Facility — Defines a user-defined application from which system logs are sent to the remote server.
Only one facility can be assigned to a single server. If a second facility level is assigned, the first facility
level is overridden. All applications defined for a device utilize the same facility on a server.
The possible field values are: Local 0-Local 7.
•
Description (0-64 Characters) — The user-defined server description.
•
Severity to Include — The following are the available severity levels:
–
Emergency —The system is not functioning.
–
Alert — The system needs immediate attention.
–
Critical — The system is in a critical state.
–
Error — A system error has occurred.
