Dell PowerConnect 5424

290 Configuring Device Information

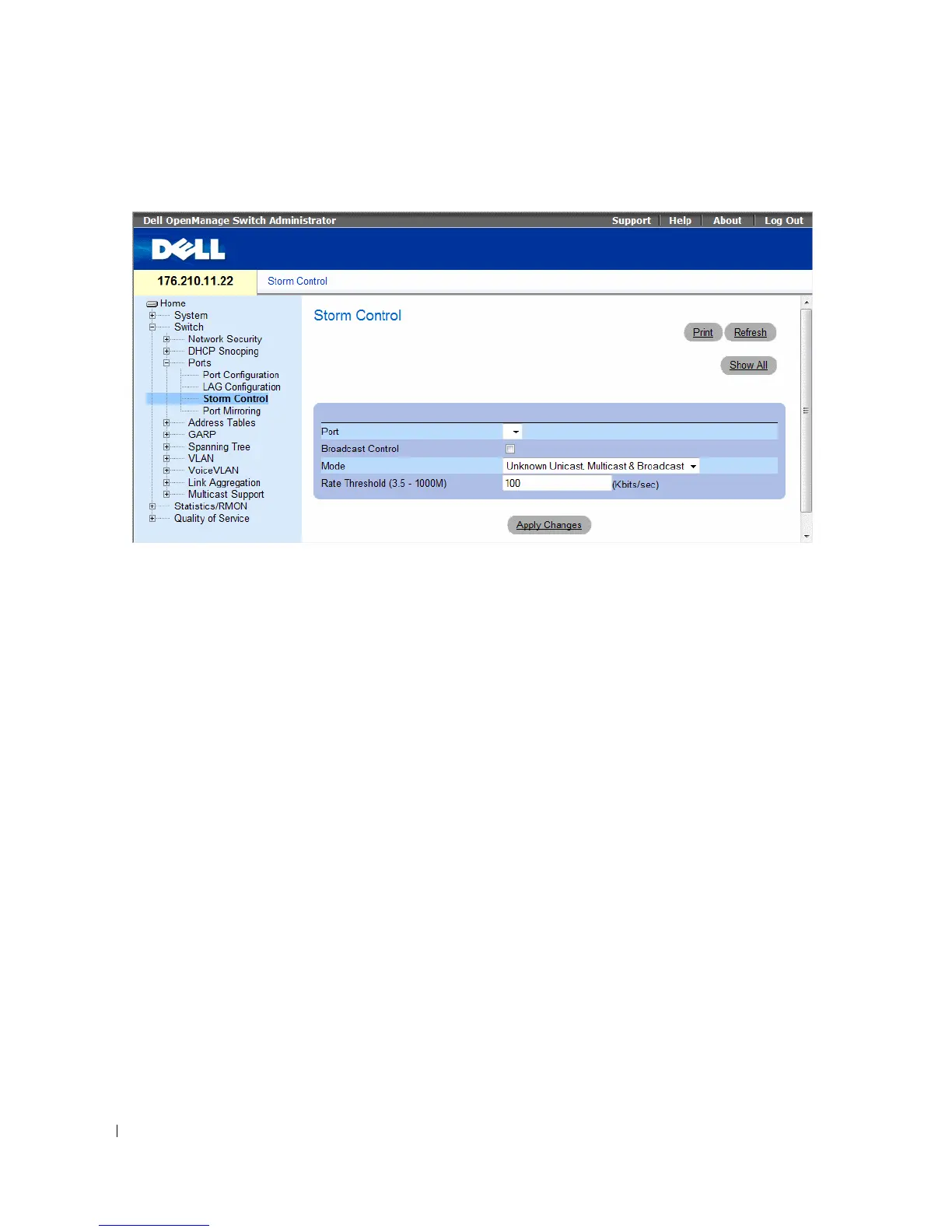

Figure 7-26. Storm Control
• Port — The port from which storm control is enabled.
•
Broadcast Control — Enables or disables forwarding broadcast packet types on the device.
•
Mode — Specifies the Broadcast mode currently enabled on the device. The possible field value are:
–
Unknown Unicast, Multicast & Broadcast — Counts Unicast, Multicast, and Broadcast traffic.
–
Multicast & Broadcast — Counts Broadcast and Multicast traffic together.
–
Broadcast Only — Counts only Broadcast traffic.
•
Rate Threshold (3.5-1000M) — The maximum rate (Kbits/Sec) at which unknown packets are
forwarded.
The range is 3.5-1000M.
Enabling Storm Control on the Device
1 Open the Storm Control page.
2 Select an interface on which to implement storm control.
3 Define the fields.
4 Click Show All .
The Storm Control is enabled on the device.
