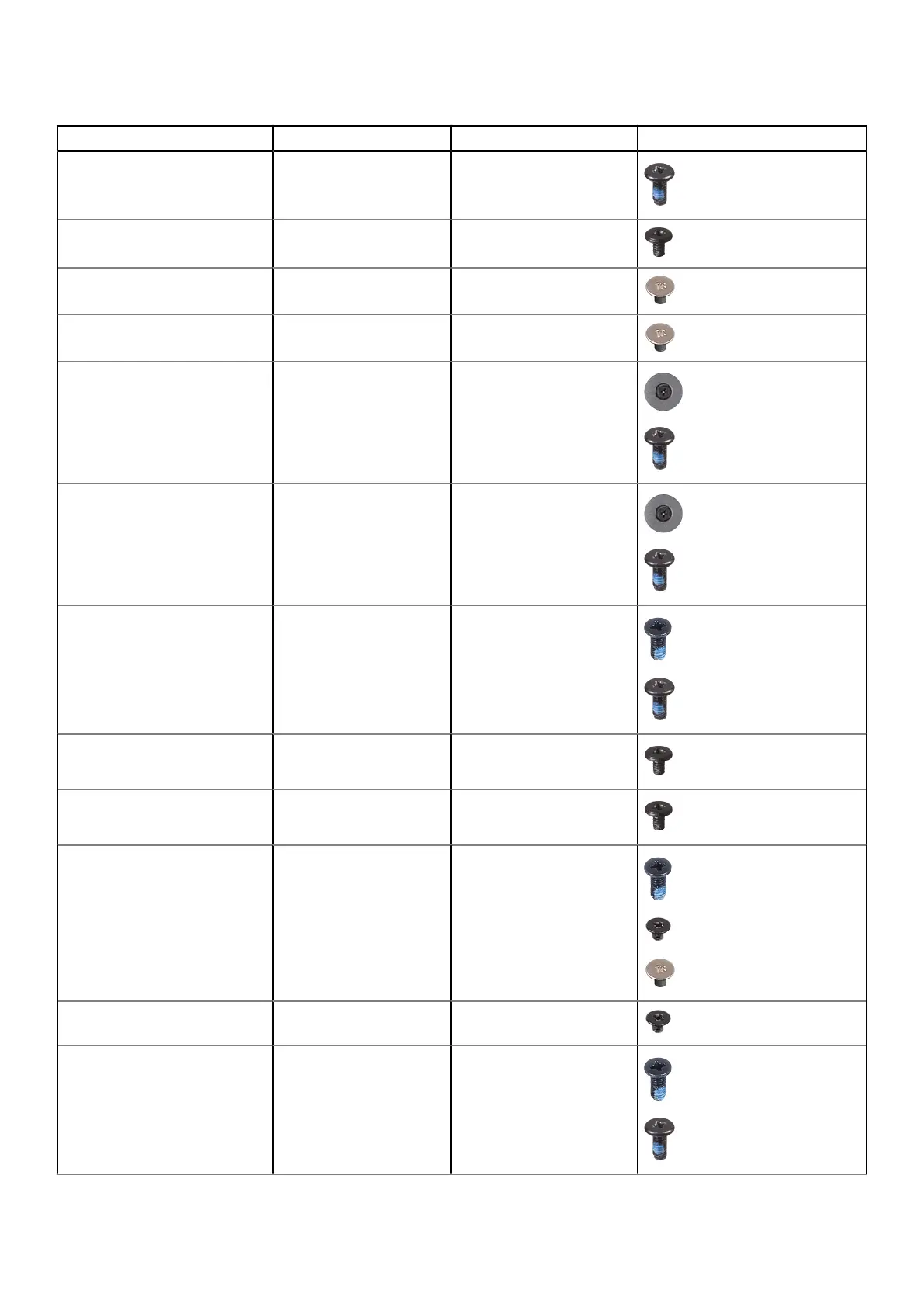

Table 1. Screw list (continued)
Component Screw type Quantity Screw image
WLAN M2x3 1
M.2 solid state drive M2x2.5 2
M.2 solid state drive2 M2x2.5 2
Heat-sink for integrated
graphics
Captive screws
M2x5
4
4
Heat-sink for discrete graphics Captive screws
M2x5
8
4
GPU card M2x6
M2x5
4
3
Power-button board M2x3 1
Power-button M2x3
Inner frame M2x6
M2x2
M2x2.5
4
9
1
SD card reader M2x2 1
System board M2x6
M2x5
4
8
Removing and installing components 11
