SD card reader
Removing SD card reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the primary solid-state drive.
4. Remove the secondary solid-state drive.
5. Remove the battery.
6. Remove the long CAMM module.
NOTE: For models shipped with long CAMM module.
7. Remove the inner frame.
About this task

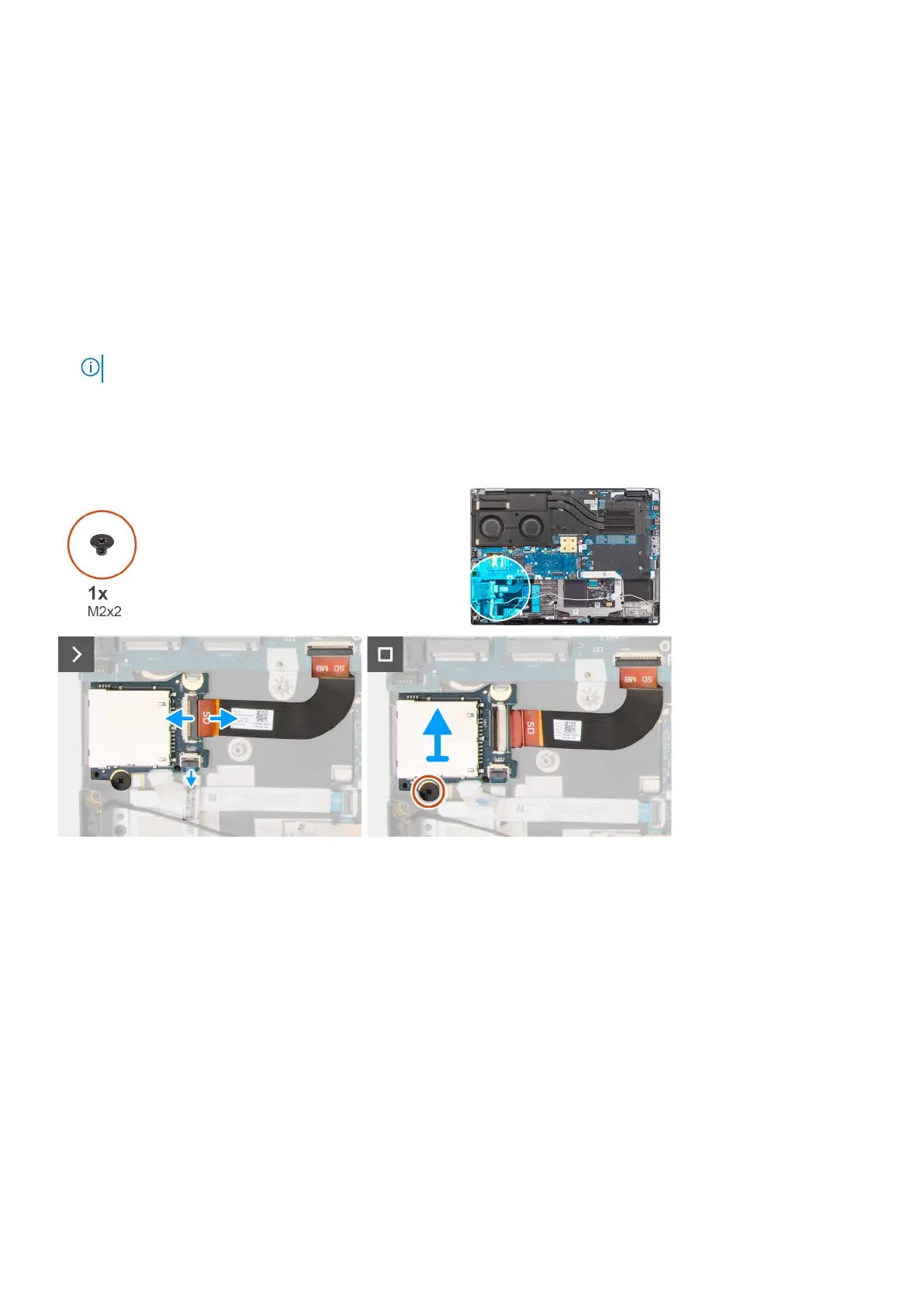

The figure indicates the location of the SD card reader and provides a visual representation of the removal procedure.
Steps
1. Disconnect the SD card reader flat printed cable (FPC) and LED board FFC from their connector on the SD card reader.
2. Remove the (M2x2) screw that secures the SD card reader on the computer chassis.
3. Lift to remove the SD card reader with its FPC out of the computer.
Installing SD card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the SD card reader and provides a visual representation of the installation procedure.
62
Removing and installing components
