NOTE: For models shipped with long CAMM module.
About this task

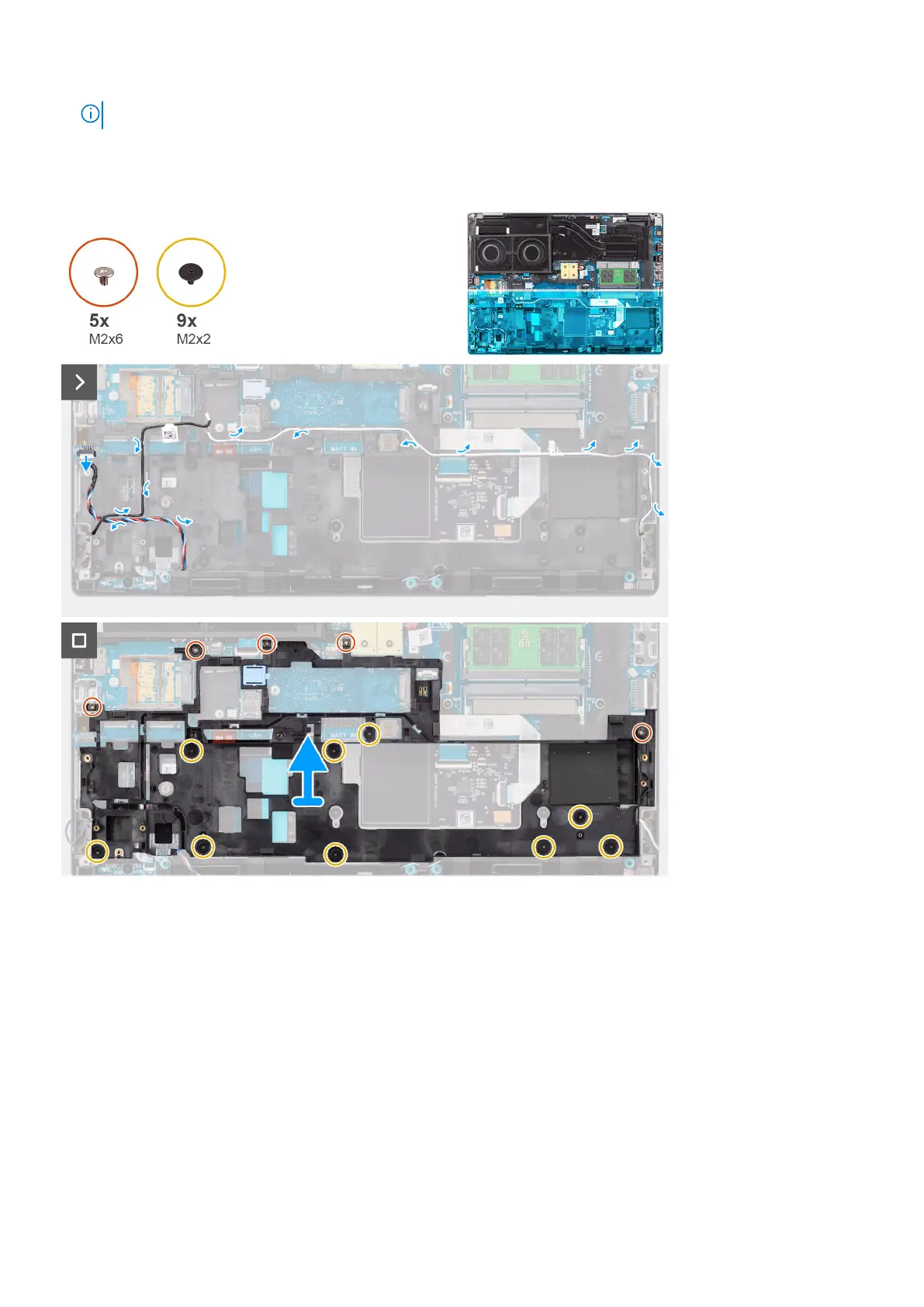

The figure indicates the location of the inner frame and provides a visual representation of the removal procedure.
Steps
1. Disconnect the two WLAN antennas and speaker cable from their connectors on the system board.
2. Unroute the WLAN antennas and speaker cable from the routing guide on the inner frame.
3. Remove the five (M2x6) and the nine (M2x2) screws that secure the inner frame to the computer chassis.
4. Remove the inner frame from the computer.
Installing the inner frame
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
