Steps
1. For computers without SSD door configuration:
a. Follow the procedure from Step 2 to Step 6.
2. Remove the (M2x2.5) screw that secures the SSD thermal plate to the chassis.
3. Carefully tilt at an angle and then slide to remove the SSD thermal plate from the SSD module.
4. Remove the (M2x2.5) screw that secures the SSD module into its slot on the computer.
5. Remove the SSD module from the chassis.
Installing the secondary M.2 SSD module
Prerequisites
NOTE: For computers shipped with M.2 2280 PCIe Gen4 SSD installed in slot 4.
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

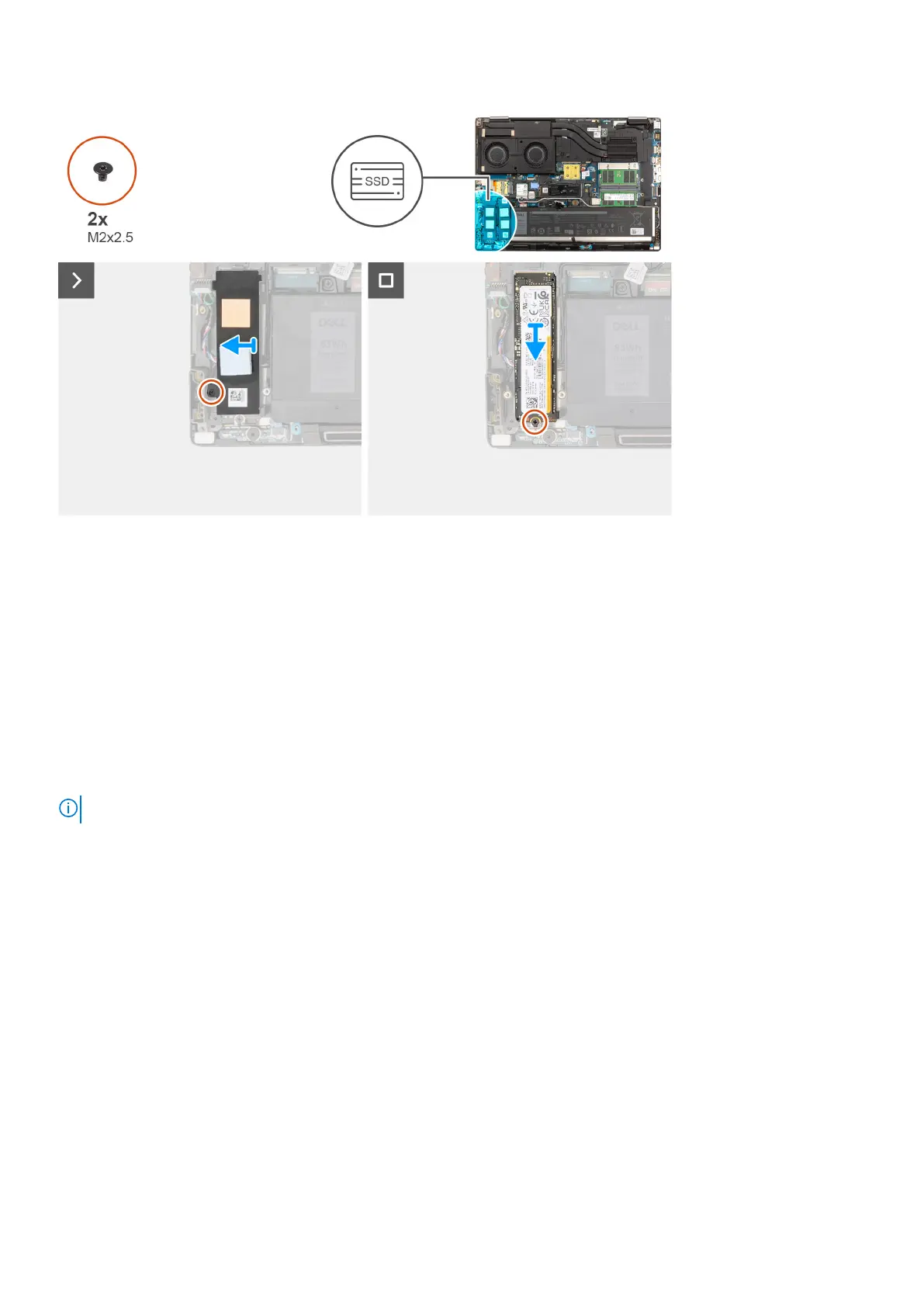

The figure indicates the location of the secondary M.2 SSD and provides a visual representation of the installation procedure.
For computers without SSD door configuration
Slot - 4
Removing and installing components
45
