Steps
1. Align and place the power button into its slot on the computer.
2. Replace the two (M2x3) screws to secure the power button in place.
Next steps
1. Install the power button board.
2. Install the heat-sink for integrated graphics or heat-sink for discrete graphics.
3. Install the base cover.
4. Follow the procedure in after working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the primary solid-state drive.
4. Remove the secondary solid-state drive.
5. Remove the battery.
About this task

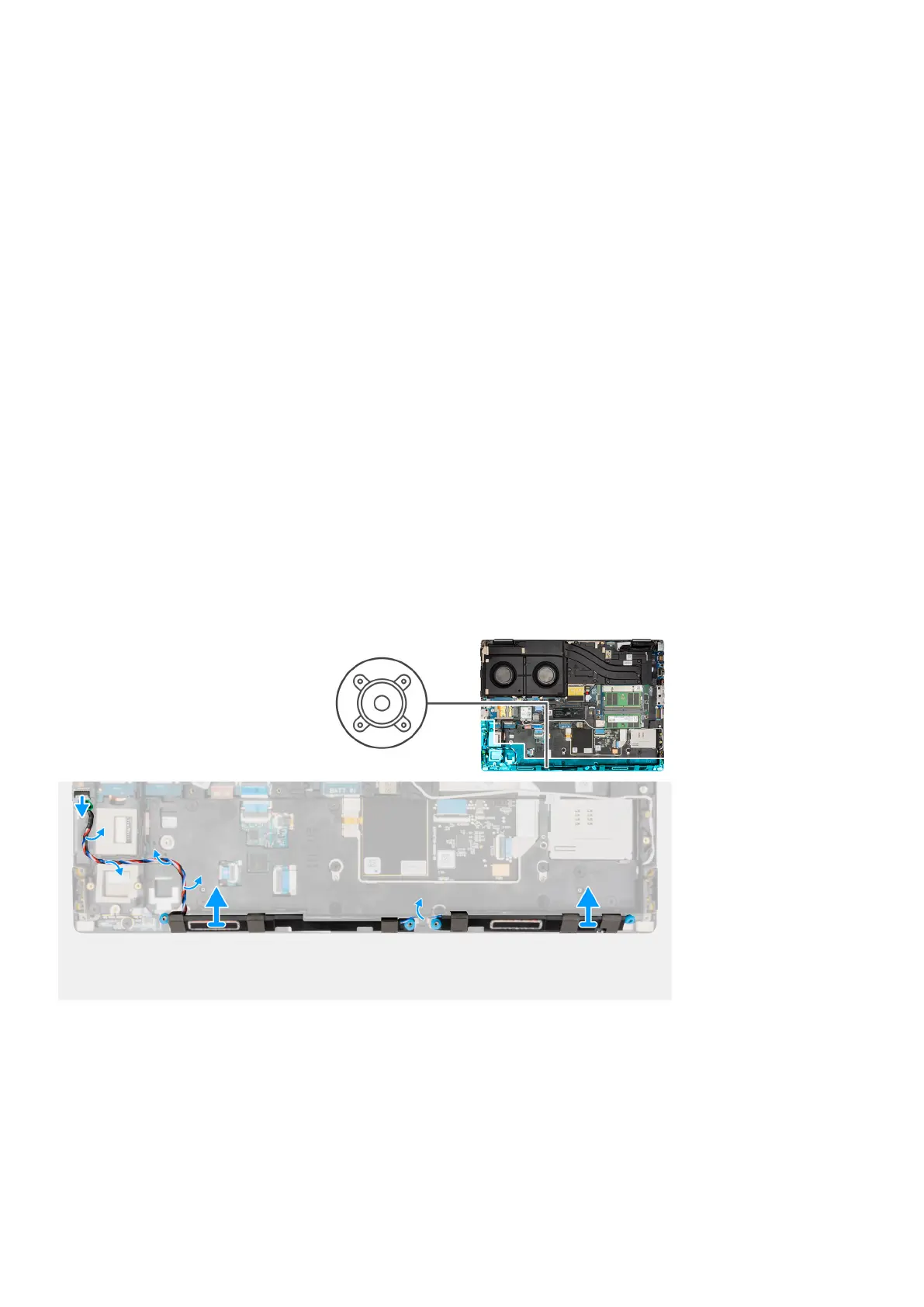

The figure indicates the location of the speakers and provides a visual representation of the removal procedure.
Steps
1. Disconnect the speaker cable from the system board.
2. Unroute the speaker cable from the routing threads on the inner frame.
3. Pry the speaker module from its slot on the top edge of the palm rest.
4. Remove the speaker module from the system chassis.
