5. Remove the CAMM module or long CAMM module or memory module.
6. Remove the interposer board module.
7. Remove the primary solid-state drive.
8. Remove the secondary solid-state drive.
9. Remove the heat-sink for integrated graphics or heat-sink for discrete graphics.
10. Remove the inner frame.
11. Remove the system board.
About this task

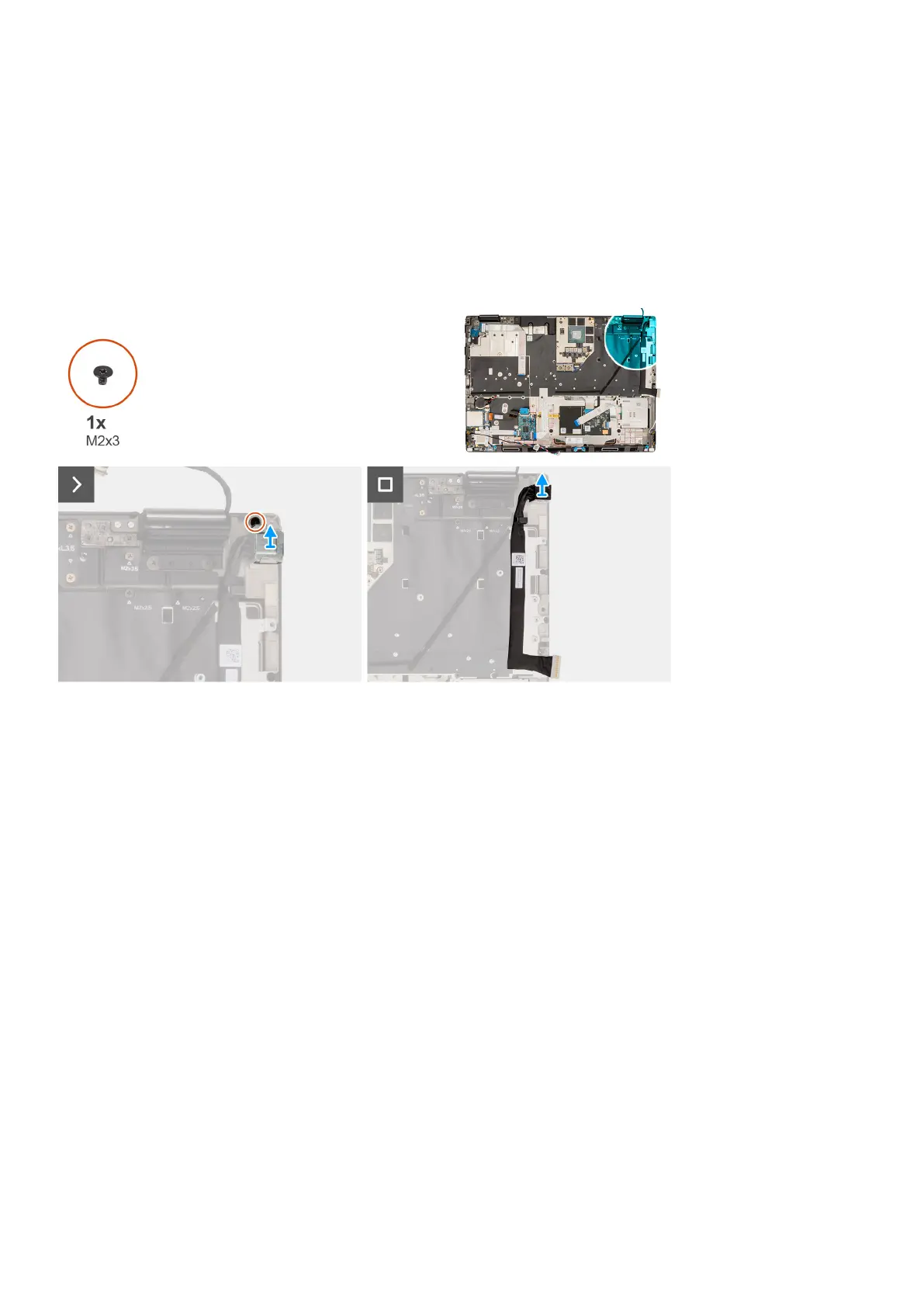

The figure indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x3) screw that secures power-adapter port bracket.
2. Disconnect the power-adapter cable from the connector on the system board.
3. Remove the power-adapter port bracket from the computer.
4. Unroute the power-adapter cable from the routing guide on the computer chassis.
Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the power-adapter port and provides a visual representation of the installation procedure.
