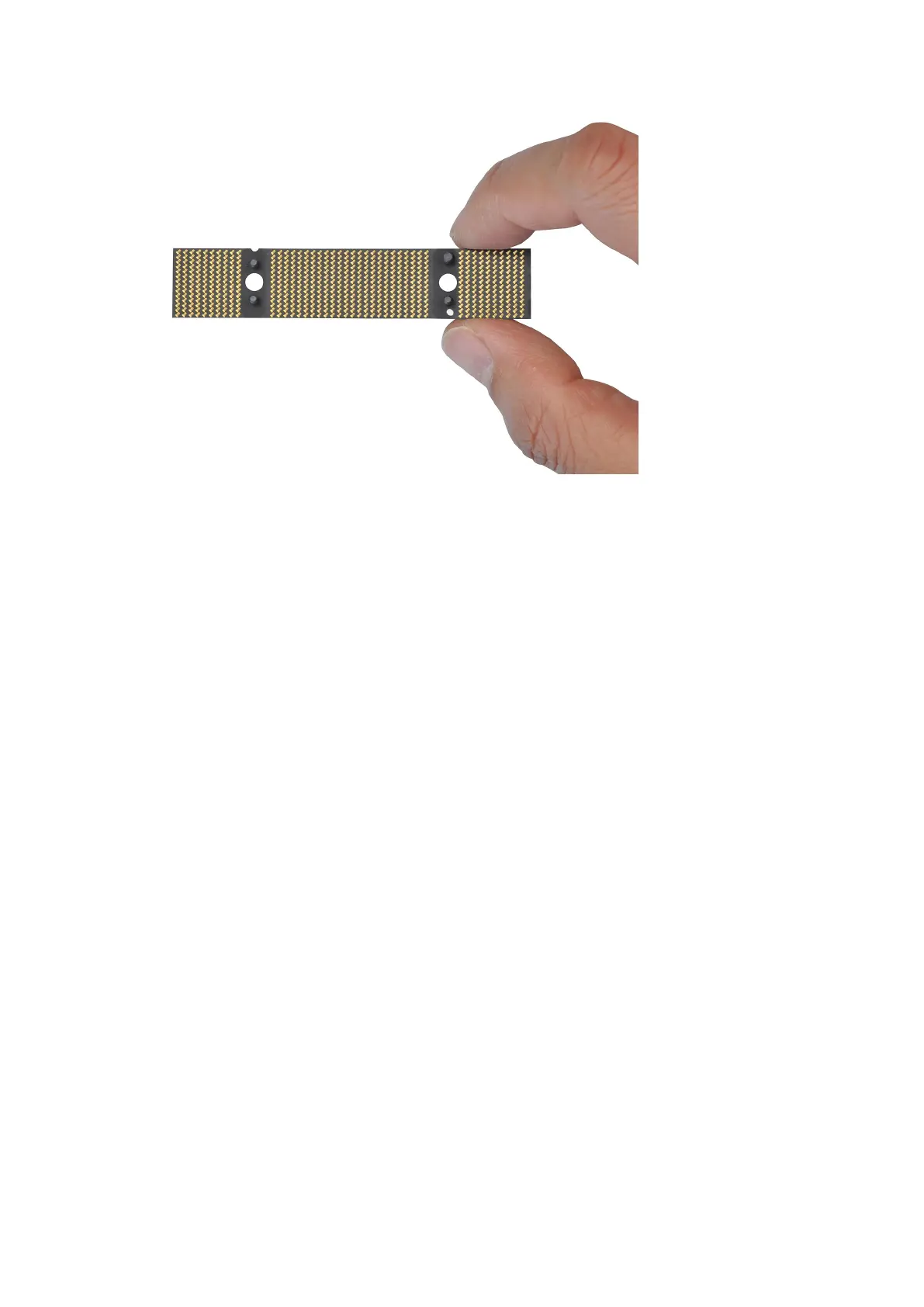

2. Place the memory interposer board on the system board.
3. Replace the two (M2x5) screws to secure the memory interposer board to the system board.
4. Place the memory bracket on the memory interposer board.
5. Replace the two (M2x6) screws to secure the memory bracket to the memory interposer board.
Next steps
1. Install the memory module.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
About this task
The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.
Removing and installing components
37
