Dell Precision 7680 User Manual

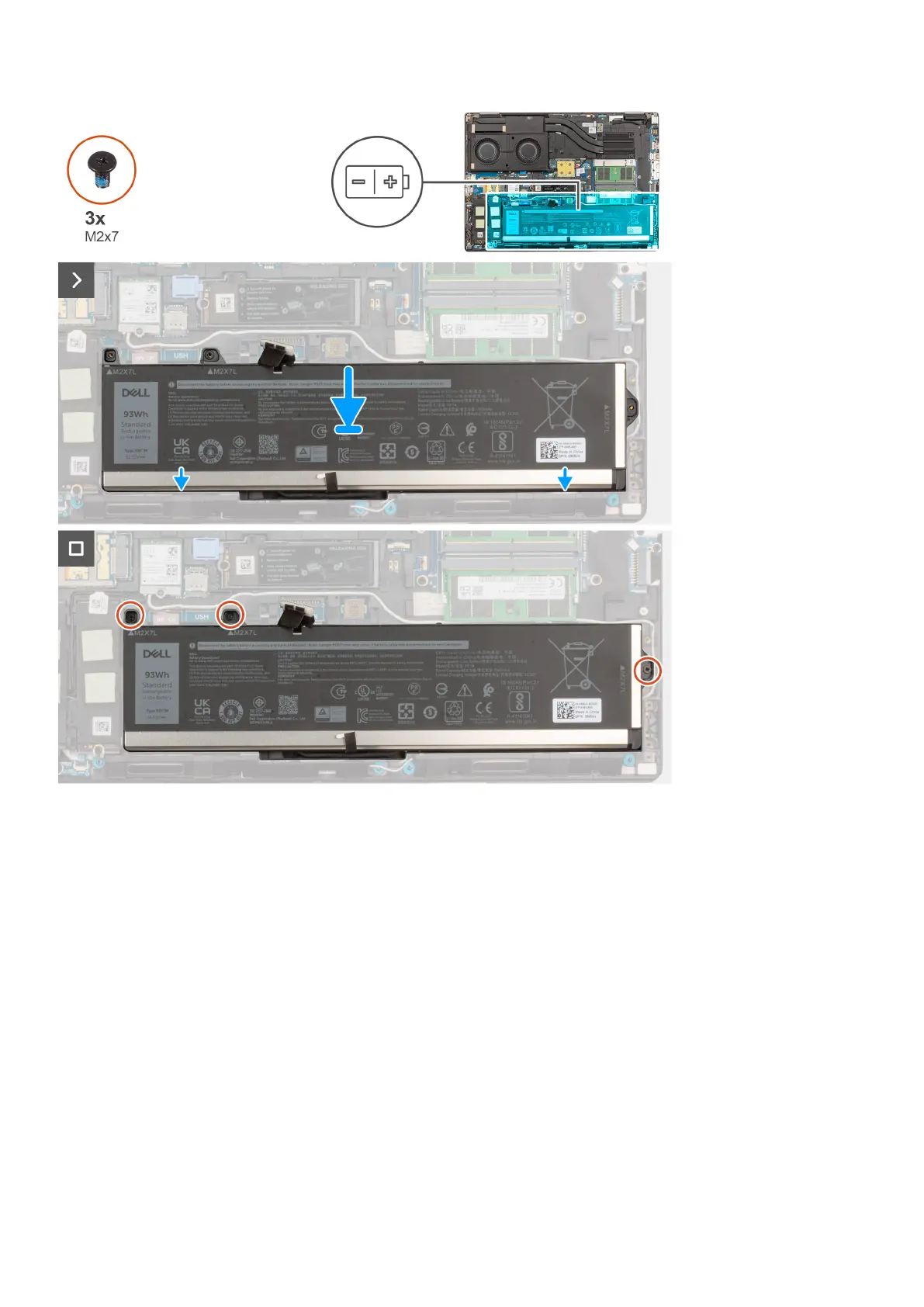

Steps
1. Align the tabs on the battery at an angle with the tab holes on the system chassis.
2. Place the battery onto its slot in the system chassis.
3. Replace the three (M2x7) screws to secure the battery to the system chassis.
Next steps
1. Install the base cover.
2. Follow the procedure in after working inside your computer.
SIM card
Removing the SIM card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
24
Removing and installing components

Dell Precision 7680 Specifications

General

Storage	Up to 8TB PCIe NVMe SSD
Processor Options	13th Gen Intel Core i5/i7/i9 or Intel Xeon
Display	16-inch, FHD+ (1920 x 1200) to UHD+ (3840 x 2400)
Graphics	Intel UHD Graphics to NVIDIA RTX 5000 Ada Generation (16GB GDDR6)
Memory	Up to 128GB DDR5
Operating System	Windows 11 Pro
Ports	HDMI 2.1, SD card reader
Wireless	Wi-Fi 6E, Bluetooth 5.2
Camera	FHD IR camera with privacy shutter
Battery	97Whr
