Wireless Wide Area Network (WWAN) card
Removing the WWAN card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
About this task

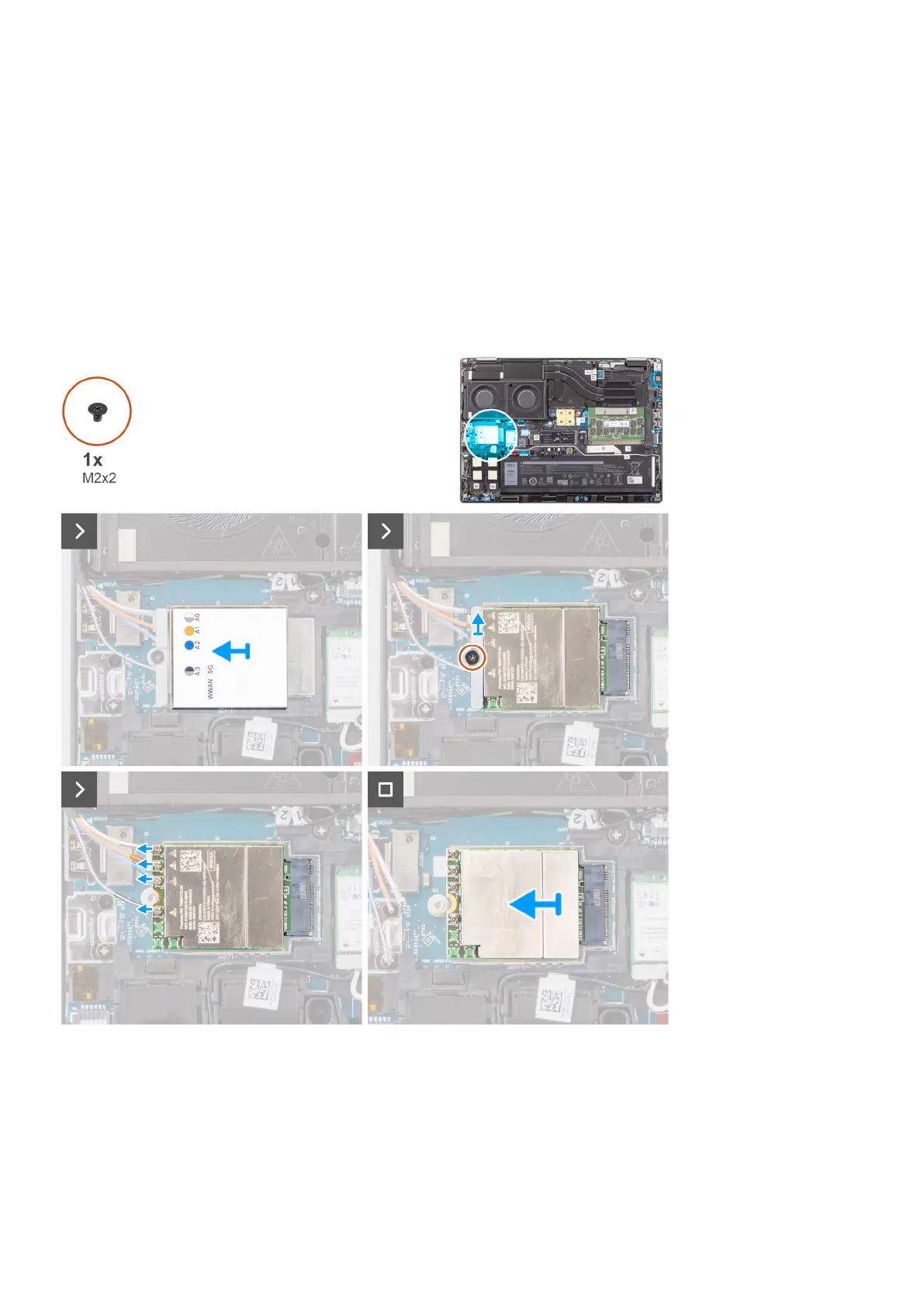

The figure indicates the location of the WWAN card and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x2) screw that secures the WWAN card bracket to the system board.
2. Lift the WWAN card bracket from the WWAN card.
3. Disconnect the antenna cables from the connector on the WWAN card.
4. Slide and remove the WWAN card from its slot on the system board.
40
Removing and installing components
