Steps
1. Remove the two (M2x3) screws that secure the power button in its slot on the computer.
2. Lift to remove the power button from the computer.
Installing the power button
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

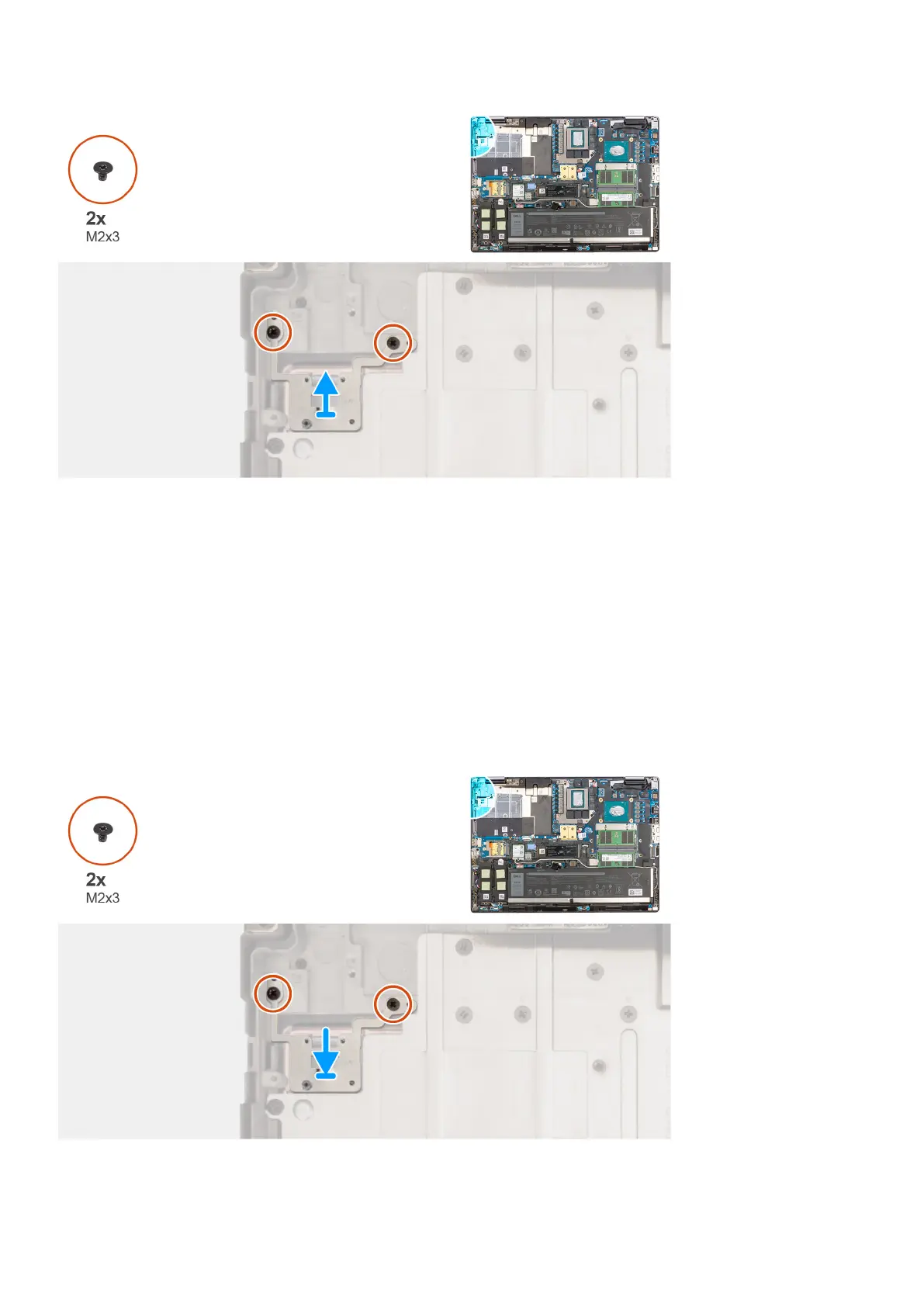

The figure indicates the location of the power button and provides a visual representation of the installation procedure.
Removing and installing components
57
