Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

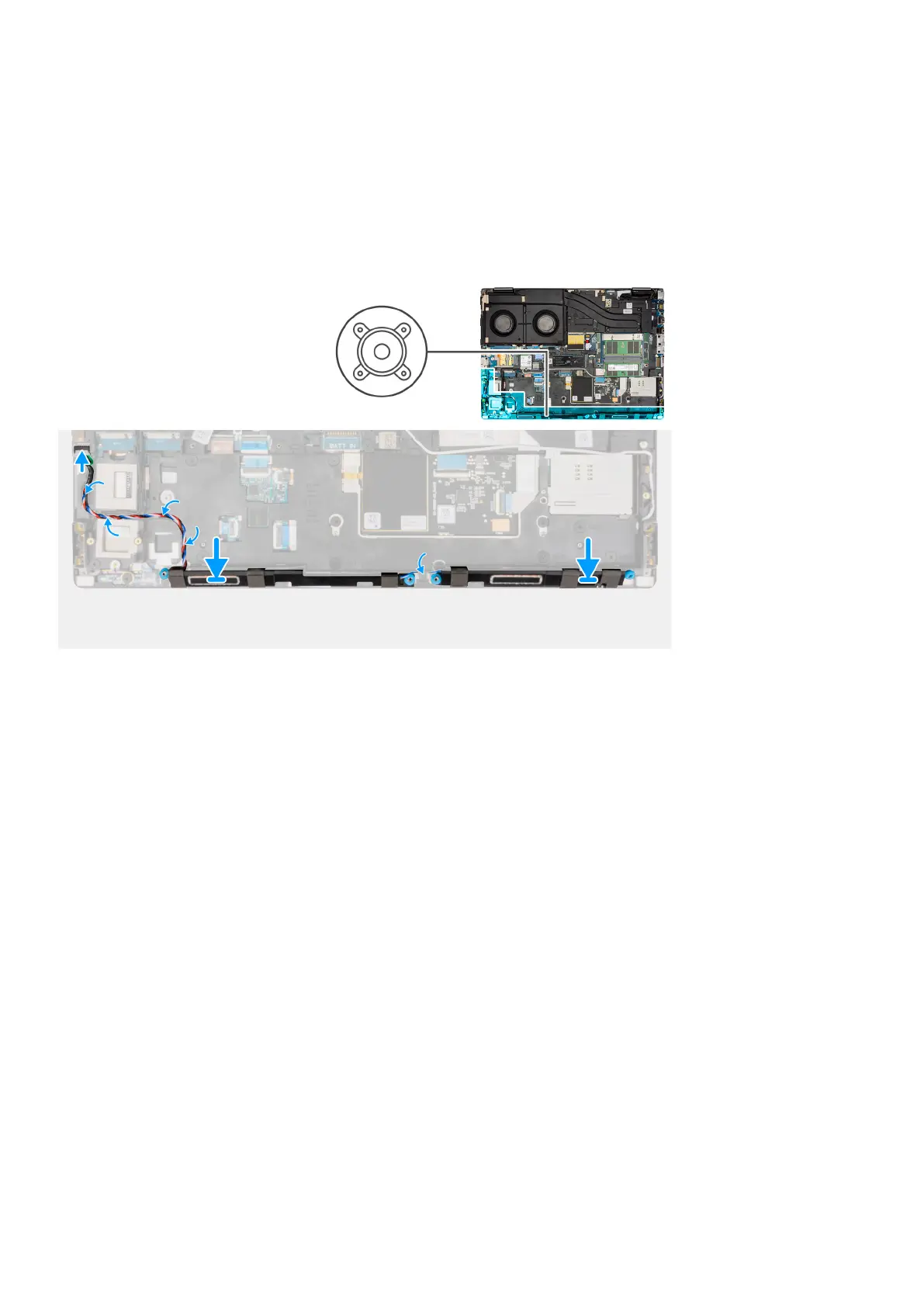

The figure indicates the location of the speakers and provides a visual representation of the installation procedure.
Steps
1. Align and place the speaker module into its slot on the top edge of the palm rest.
2. Route the speaker cable using the routing threads on the inner frame.
3. Connect the speaker cable to its connector on the system board.
Next steps
1. Install the battery.
2. Install the secondary solid-state drive.
3. Install the primary solid-state drive.
4. Install the base cover.
5. Follow the procedure in after working inside your computer.
Inner frame
Removing the inner frame
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the primary solid-state drive.
4. Remove the secondary solid-state drive.
5. Remove the battery.
6. Remove the long CAMM module.
Removing and installing components
