Steps

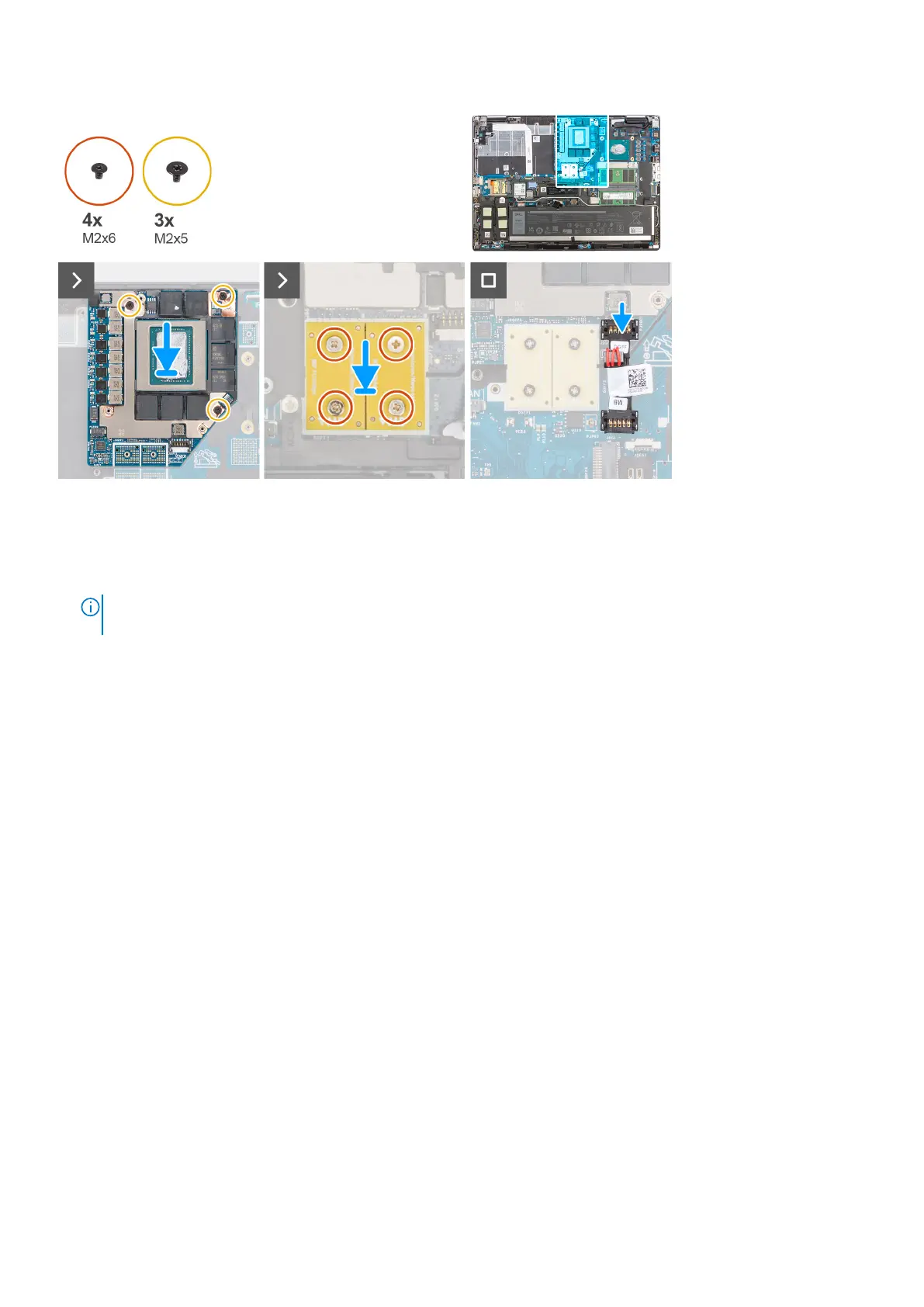

1. Align and place the GPU card into its slot on the system chassis.
2. Replace the three (M2x5) screws to secure the GPU card to the system chassis.
3. Align and place the PCB beam connectors on the system board.
NOTE:
When installing an FPC beam connector, ensure that the end marked "MB" is connected to the system board
and that the alignment pins on the connector are inserted into the openings on the boards.
4. Replace the four (M2x6) screws that secure the PCB beam connectors on the system board.
5. Slide the GPU power cable connector into its slot to connect the GPU power cable to the GPU card.
6. Lock the GPU power cable connector to secure the GPU card.
Next steps
1. Install the heat-sink for discrete graphics.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
GPU power cable
Removing the GPU power cable
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the heat-sink for discrete graphics.
About this task
The figure indicates the location of the GPU power cable and provides a visual representation of the removal procedure.
52
Removing and installing components
