9. Install the battery.
10. Install the SIM card.
11. Install the base cover.
12. Follow the procedure in after working inside your computer.
Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the SIM card.
4. Remove the battery.
5. Remove the CAMM module or long CAMM module or memory module.
6. Remove the interposer board module.
7. Remove the primary solid-state drive.
8. Remove the secondary solid-state drive.
9. Remove the heat-sink for integrated graphics or heat-sink for discrete graphics.
10. Remove the inner frame.
11. Remove the system board.
About this task

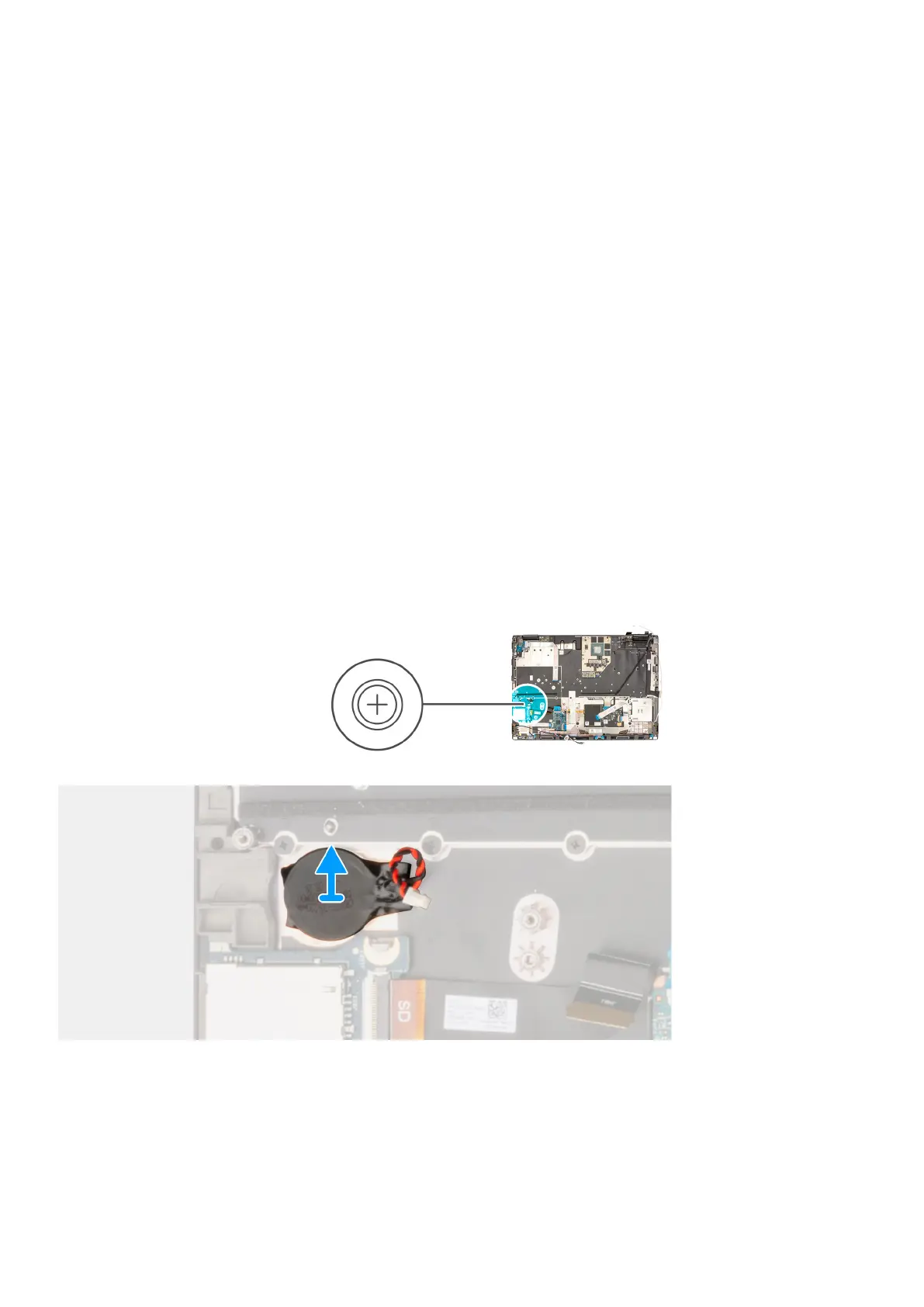

The figure indicates the location of the coin-cell battery and provides a visual representation of the removal procedure.
Steps
Pry to remove the coin-cell battery, which is located under the system board, from the palmrest while lifting the system board.
72
Removing and installing components
