Steps

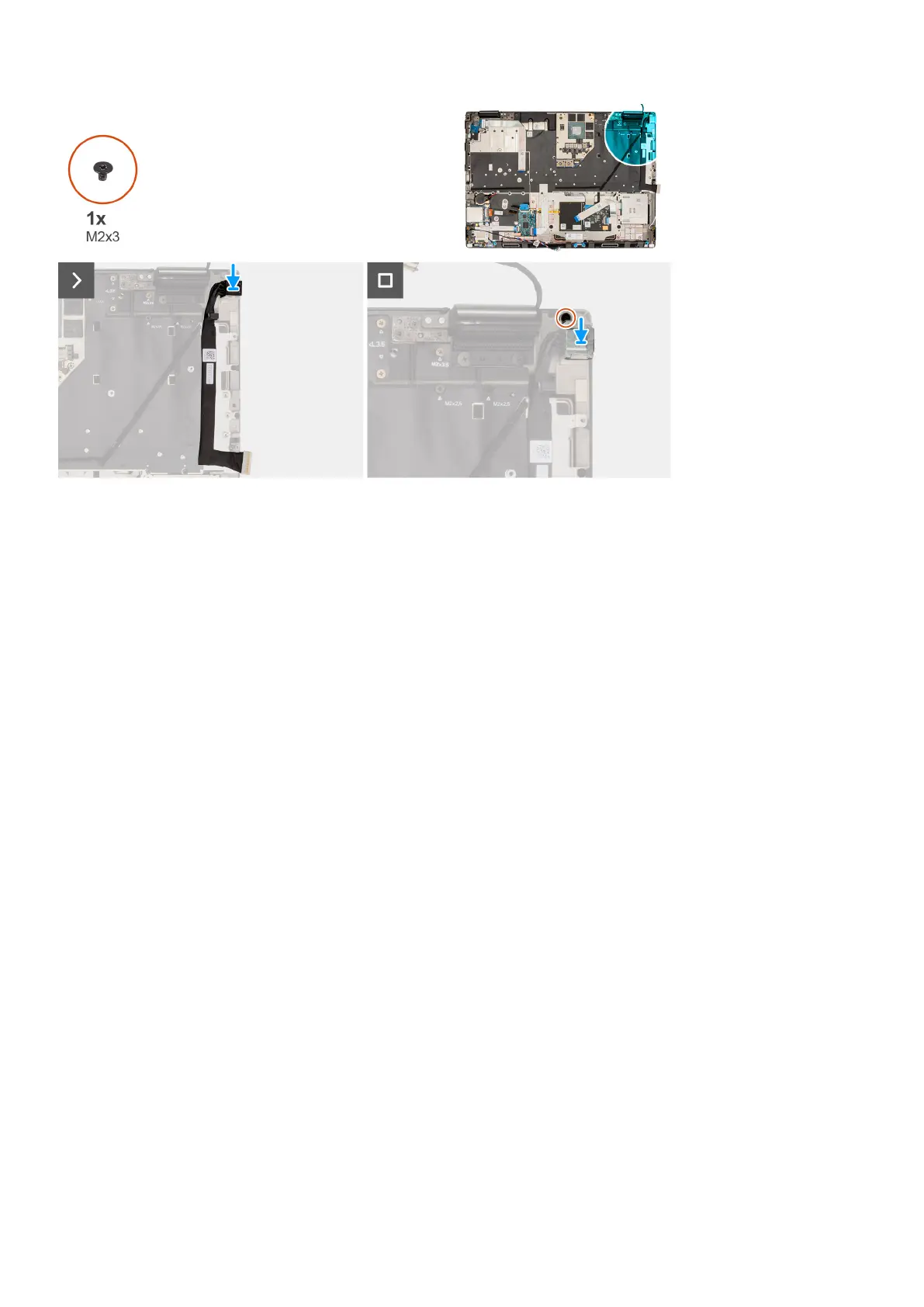

1. Connect the power-adapter cable to the connector on the system board.
2. Place the power-adapter port bracket on the power-adapter port.
3. Replace the (M2x3) screw to secure the power-adapter port bracket to the computer.
4. Adhere and route the power-adapter cable using the routing guides on the computer chassis.
Next steps
1. Install the system board.
2. Install the inner frame.
3. Install the heat-sink for integrated graphics or heat-sink for discrete graphics.
4. Install the secondary solid-state drive.
5. Install the primary solid-state drive.
6. Install the interposer board module.
7. Install the CAMM module or long CAMM module or memory module.
8. Install the battery.
9. Install the SIM card.
10. Install the base cover.
11. Follow the procedure in after working inside your computer.
Smart-card reader
Removing the smart-card reader
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the SIM card.
4. Remove the battery.
5. Remove the CAMM module or long CAMM module or memory module.
6. Remove the interposer board module.
7. Remove the primary solid-state drive.
8. Remove the secondary solid-state drive.
Removing and installing components
