Steps

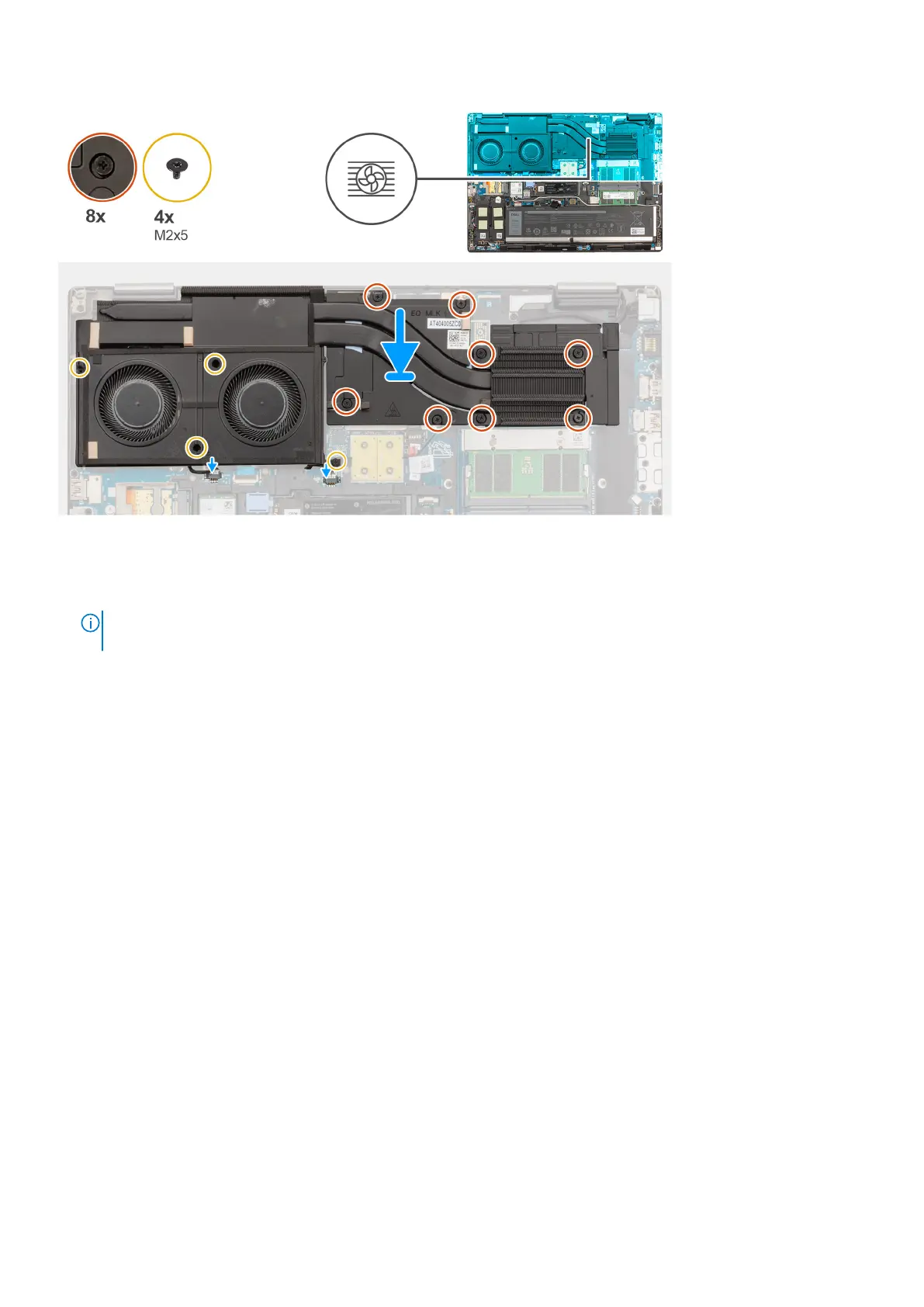

1. Align and insert the heat sink into its slot on the computer.
2. Tighten the eight captive screws to secure the heat sink to the system board.
NOTE:
Tighten the captive screws in the order that is stamped onto the heat sink next to the screws [1 > 2 > 3 > 4 > 5
> 6 > 7 > 8].
3. Replace the four (M2x5) screws to secure the fans to the system chassis.
4. Connect the two fan cables to their connectors on the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
GPU card
Removing the GPU card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the heat-sink for discrete graphics.
About this task
The figure indicates the location of the GPU card and provides a visual representation of the removal procedure.
50
Removing and installing components
