Installing the coin-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

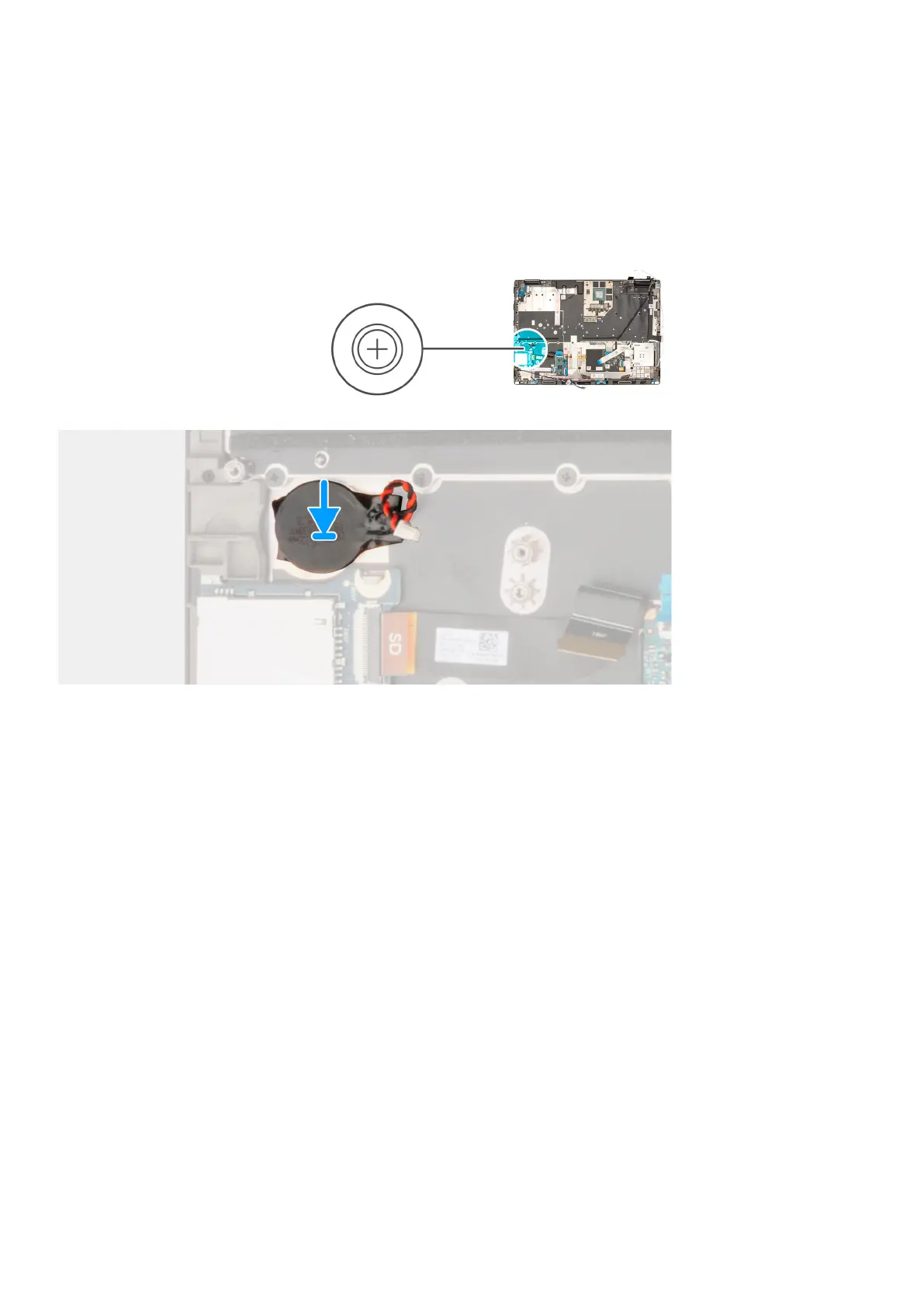

The figure indicates the location of the coin-cell battery and provides a visual representation of the installation procedure.
Steps
Adhere the coin-cell battery to the palmrest.
Next steps
1. Install the system board.
2. Install the inner frame.
3. Install the heat-sink for integrated graphics or heat-sink for discrete graphics.
4. Install the secondary solid-state drive.
5. Install the primary solid-state drive.
6. Install the interposer board module.
7. Install the CAMM module or long CAMM module or memory module.
8. Install the battery.
9. Install the SIM card.
10. Install the base cover.
11. Follow the procedure in after working inside your computer.
Removing and installing components
73
