Steps
1. Connect the power button board FFC to the power button board.
2. Align and place the power button board with the power button FFC into its slot on the computer.
3. Replace the (M2x3) screw to secure the power button board to the computer.
4. Adhere the power button board FFC to the system chassis.
5. Connect the power button board FFC to the connector on the system board.
Next steps
1. Install the heat-sink for integrated graphics or heat-sink for discrete graphics.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the heat-sink for integrated graphics or heat-sink for discrete graphics.
4. Remove the power button board.
About this task

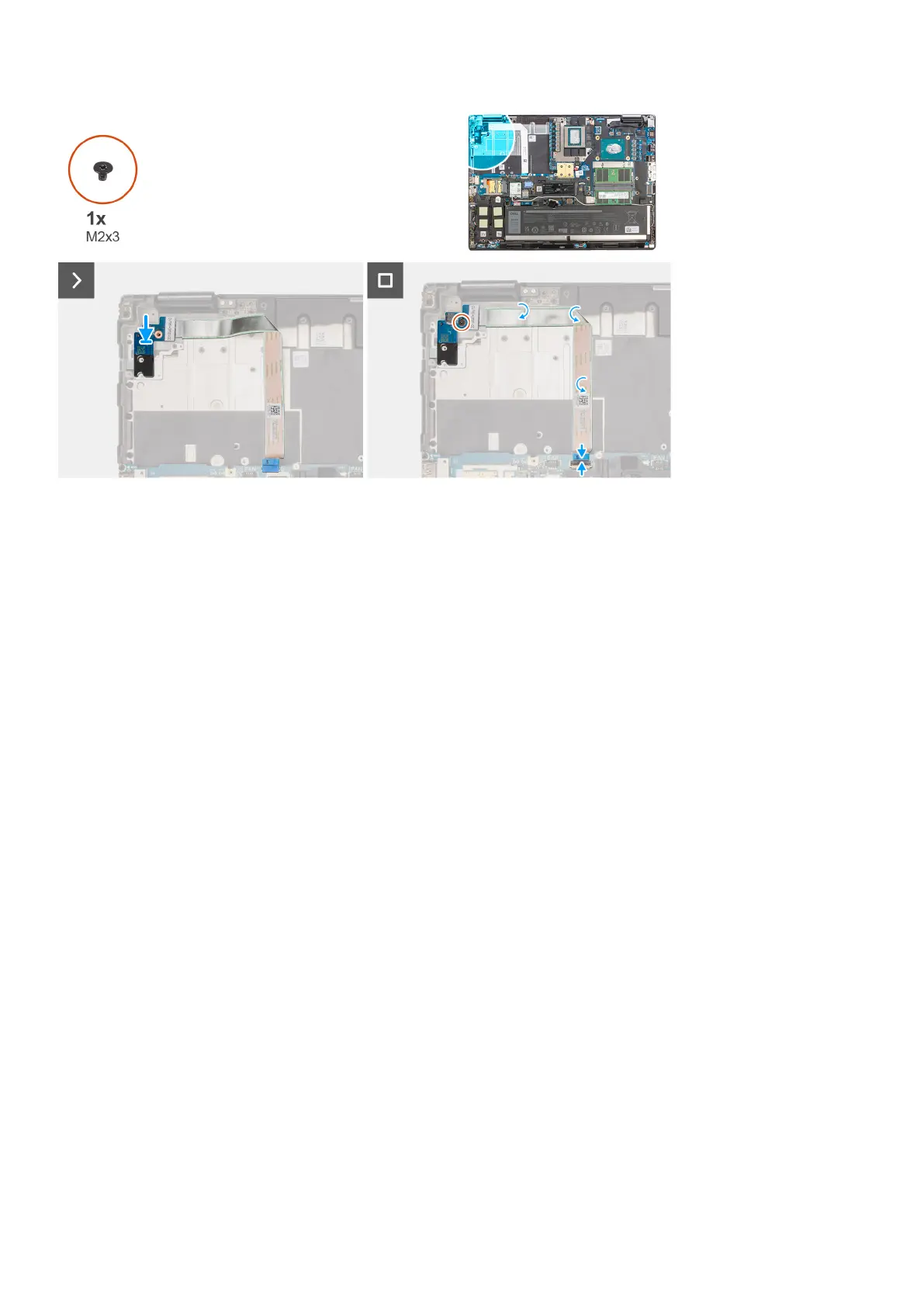

The figure indicates the location of the power button and provides a visual representation of the removal procedure.
