Dell Precision 7680 - Page 15

Steps

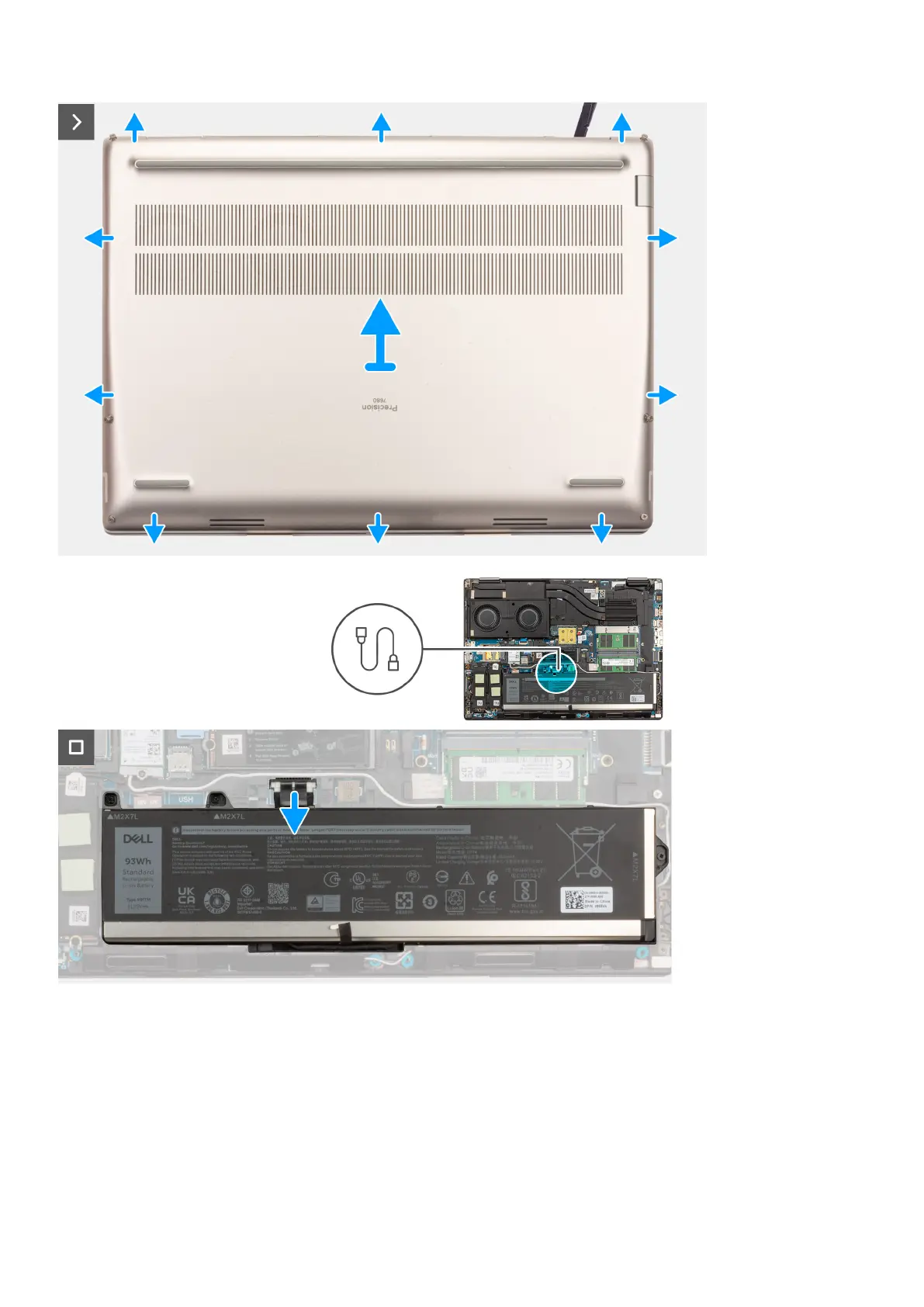

1. Loosen the six captive screws that secure the base cover to the computer.
2. For computers shipped without a smart-card reader, pry open the base cover starting from the bottom-right corner of the
base cover.
Removing and installing components
15
