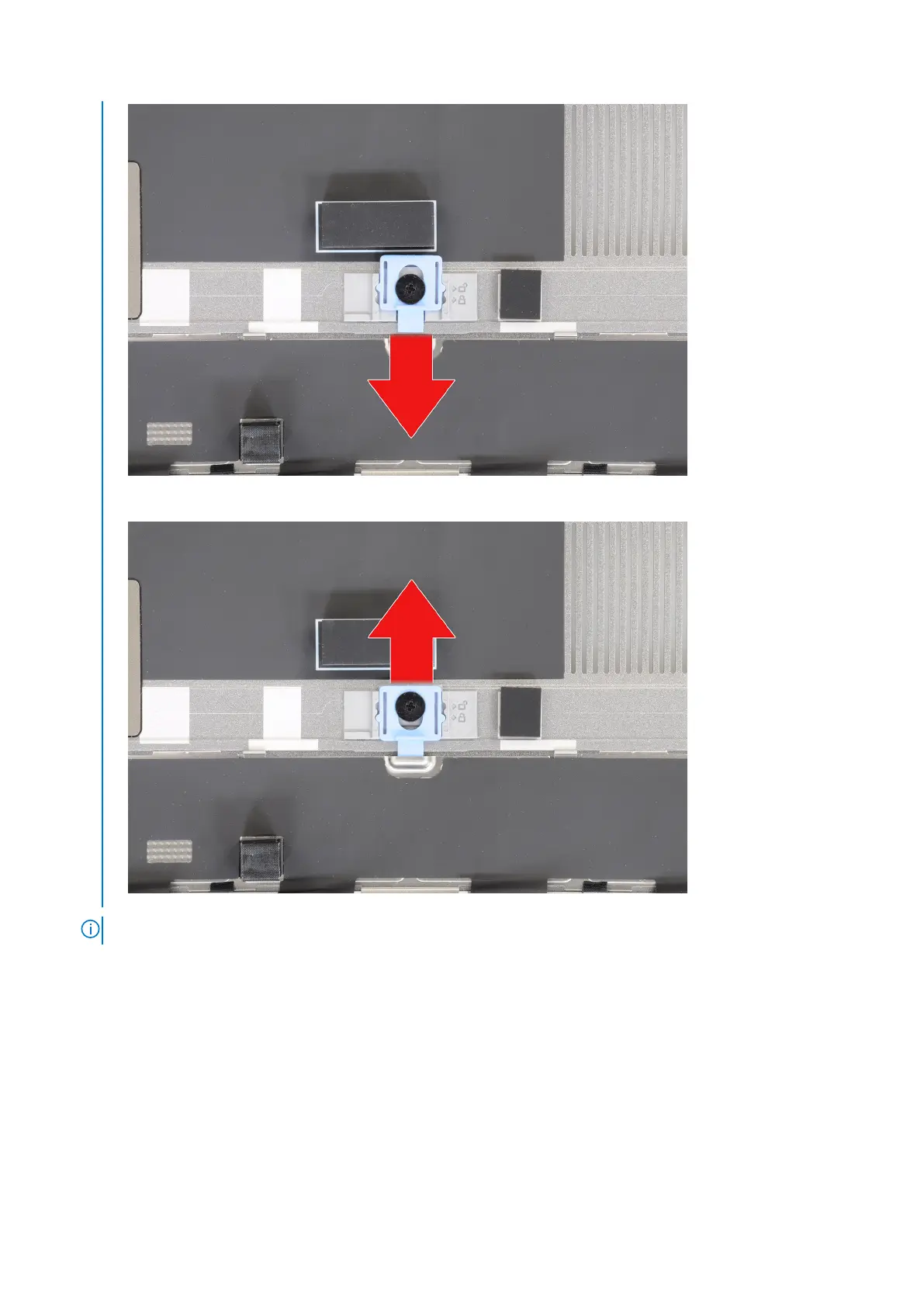

When the door is locked, push the latch upward to unlock the door.
NOTE: The images that are shown above are of Precision 7780. The same information applies to Precision 7680.
6. After removing the base cover, if any of the thermal pads for the M.2 SSDs are detached, readhere them to their correct
locations on the system.
Models shipped with an 83 Wh battery:
18
Removing and installing components
