12. Remove the inner frame.
About this task
The figure indicates the location of the system board and provides a visual representation of the removal procedure.

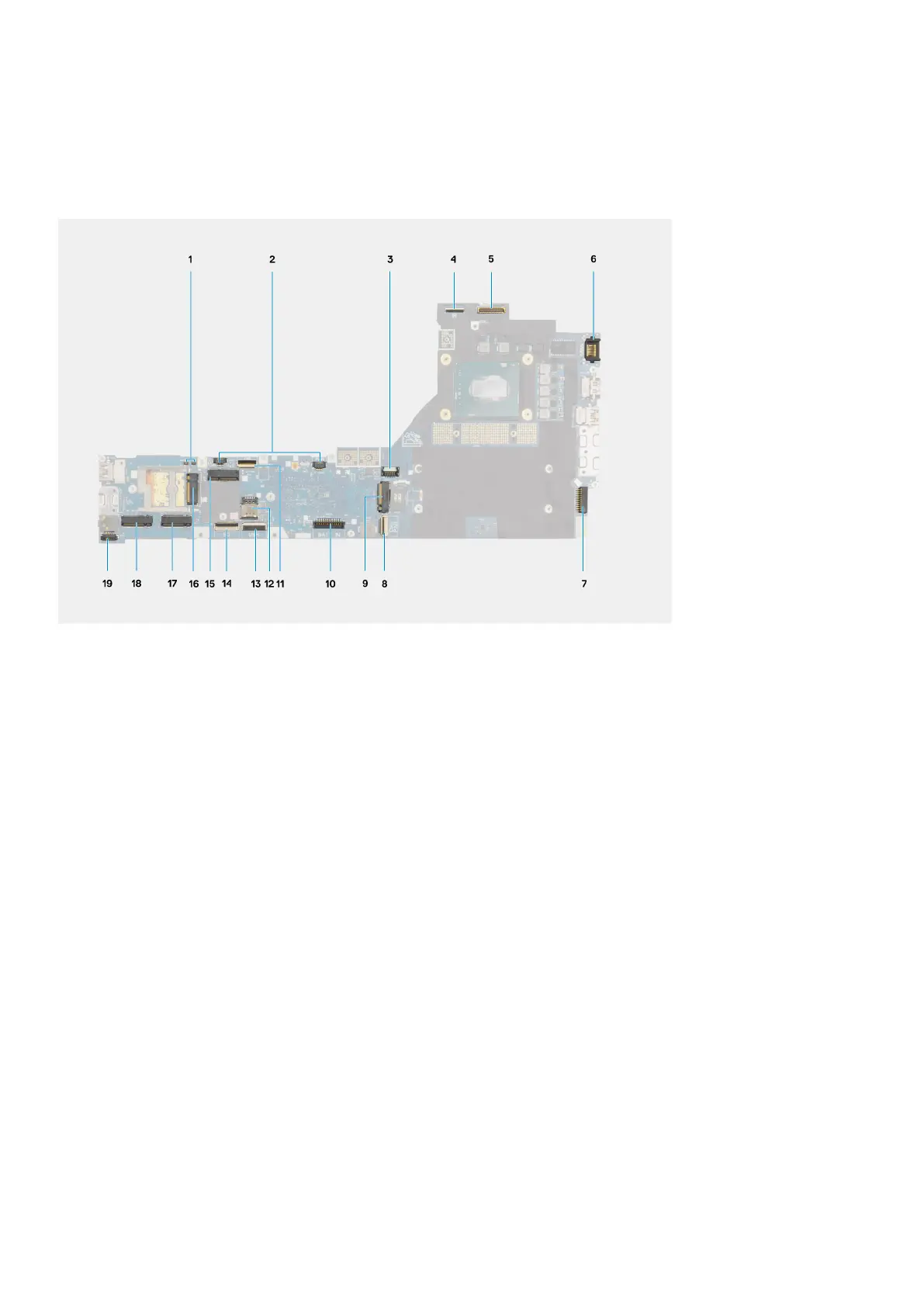

The following image indicates the connectors on your system board:
1.
WWAN (Darwin) antenna connectors
2. Fan cable connectors
3. GPU card cable connector
4. IR camera cable connector
5. Display cable connector
6. LAN port
7. Power adapter cable connector
8. Touchpad cable connector
9. M.2 SSD slot 3 connector
10. Battery cable connector
11. Power button board FFC connector
12. SIM card slot
13. USH board cable connector
14. SD card reader FPC cable connector
15. WLAN card connector
16. WWAN card connector
17. M.2 SSD slot 4 connector
18. M.2 SSD slot 2 connector
19. Speaker cable connector
66
Removing and installing components
