About this task

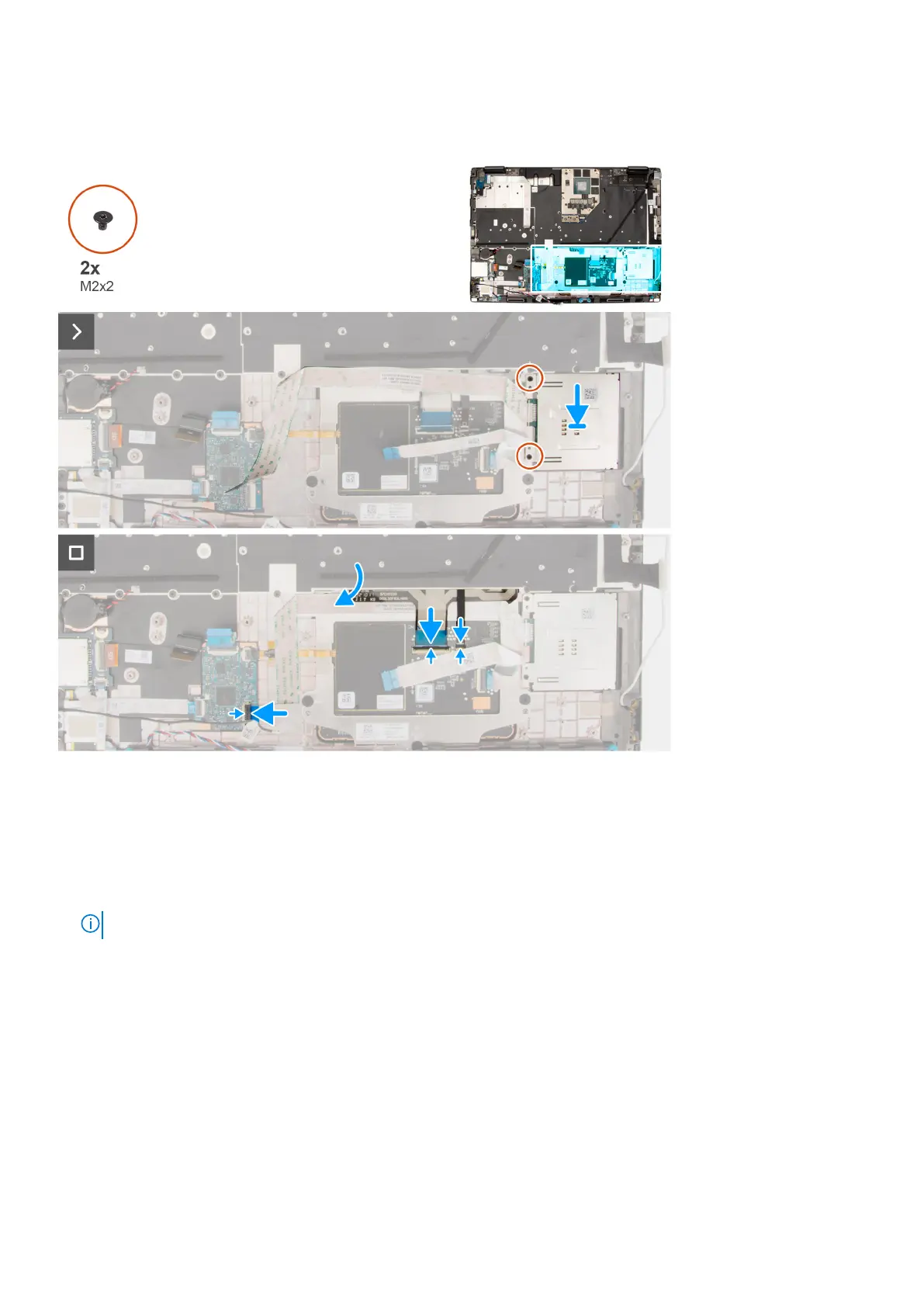

The figure indicates the location of the smart-card reader and provides a visual representation of the installation procedure.
Steps
1. Align and place the smart-card reader into its slot on the computer.
2. Replace the two (M2x2) screws to secure the smart-card reader in place.
3. Adhere the smart-card reader FFC to the touchpad.
4. Connect the smart-card reader FFC to the connector on the USH daughter board.
5. Connect the touchpad buttons FFC and keyboard backlight FFC to the touchpad.
NOTE: For models shipped with a keyboard backlight from the touchpad.
Next steps
1. Install the inner frame.
2. Install the heat-sink for integrated graphics or heat-sink for discrete graphics.
3. Install the secondary solid-state drive.
4. Install the primary solid-state drive.
5. Install the interposer board module.
6. Install the CAMM module or long CAMM module or memory module.
7. Install the battery.
8. Install the SIM card.
9. Install the base cover.
10. Follow the procedure in after working inside your computer.
Removing and installing components
81
