Steps

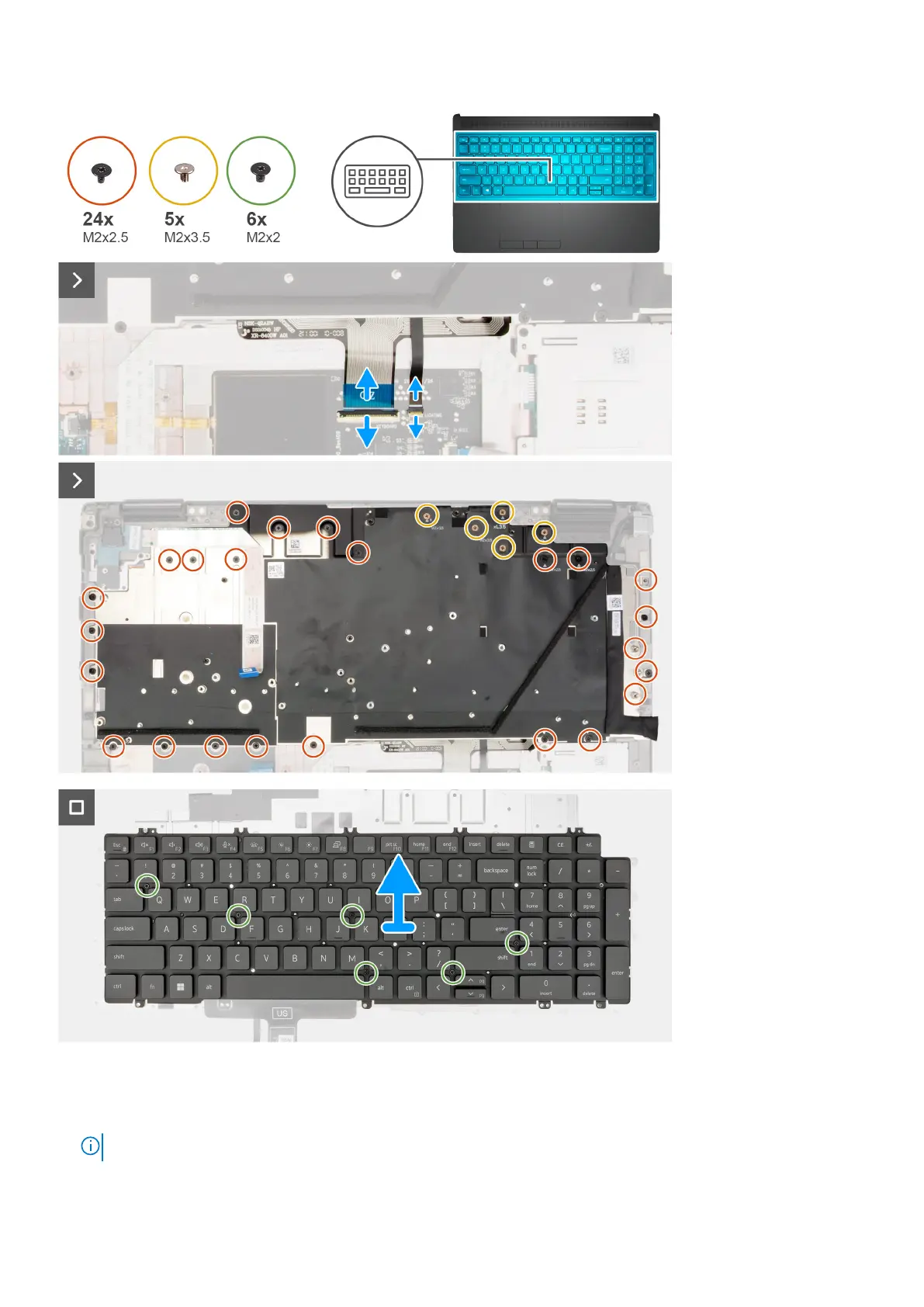

1. Lift the latch and disconnect the keyboard FPC and the keyboard backlight FPC from the connectors on the touchpad
module.
NOTE: For models shipped with a keyboard backlight.
Removing and installing components 83
