Dell Vostro 5481 - Page 51

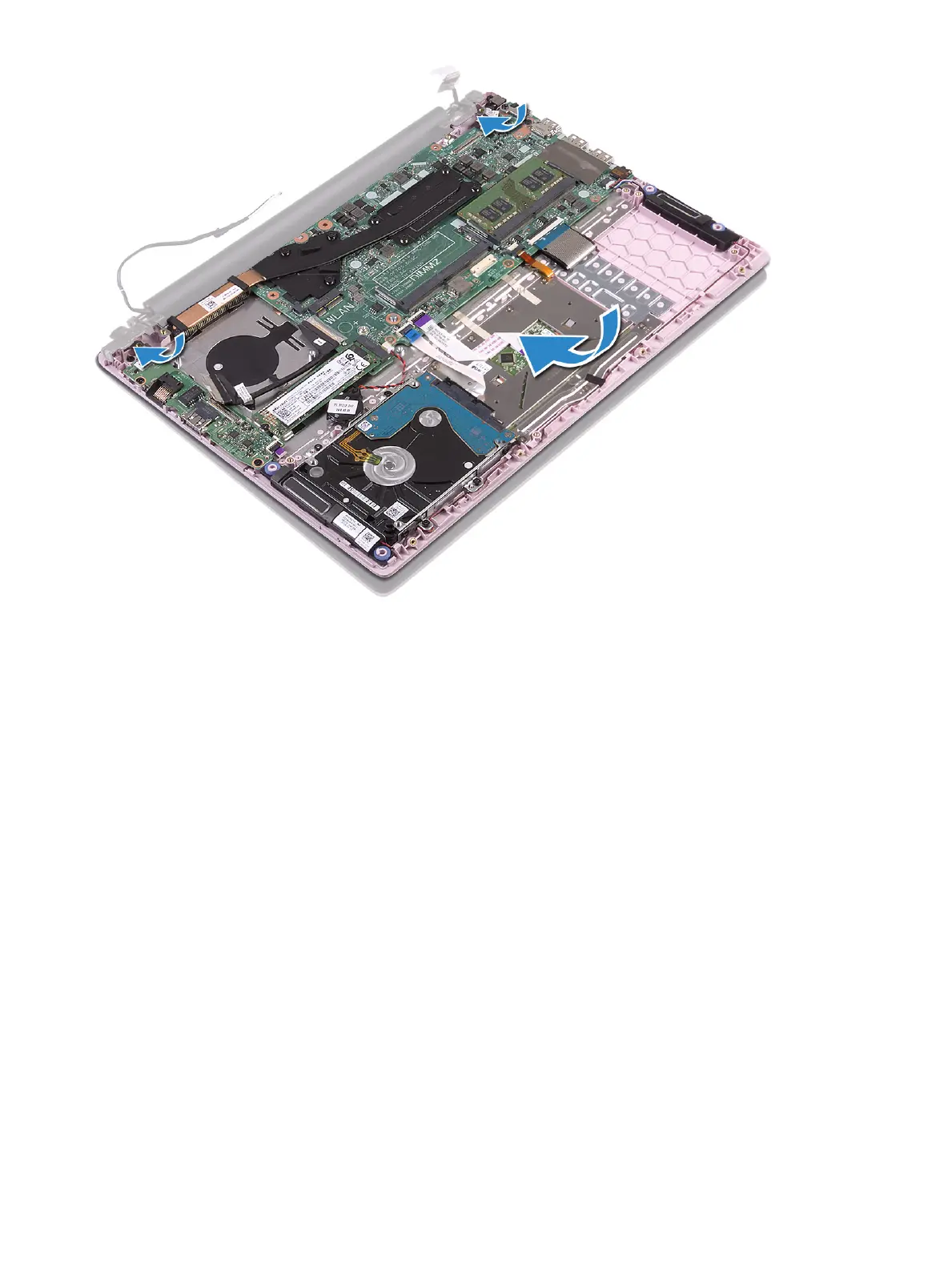

2 Place and align the screw holes on the display hinges with the screw holes on the palm-rest and keyboard assembly [1].
3 Replace the four (M2.5x5) screws to secure the display hinges to the palmrest and keyboard assembly [2].
4 Reroute the WLAN antenna cable through the routing channel [3].
Removing and installing components
51
