Chapter 7 Temperature Measurement Module AS04/08TC
7- 39
7_

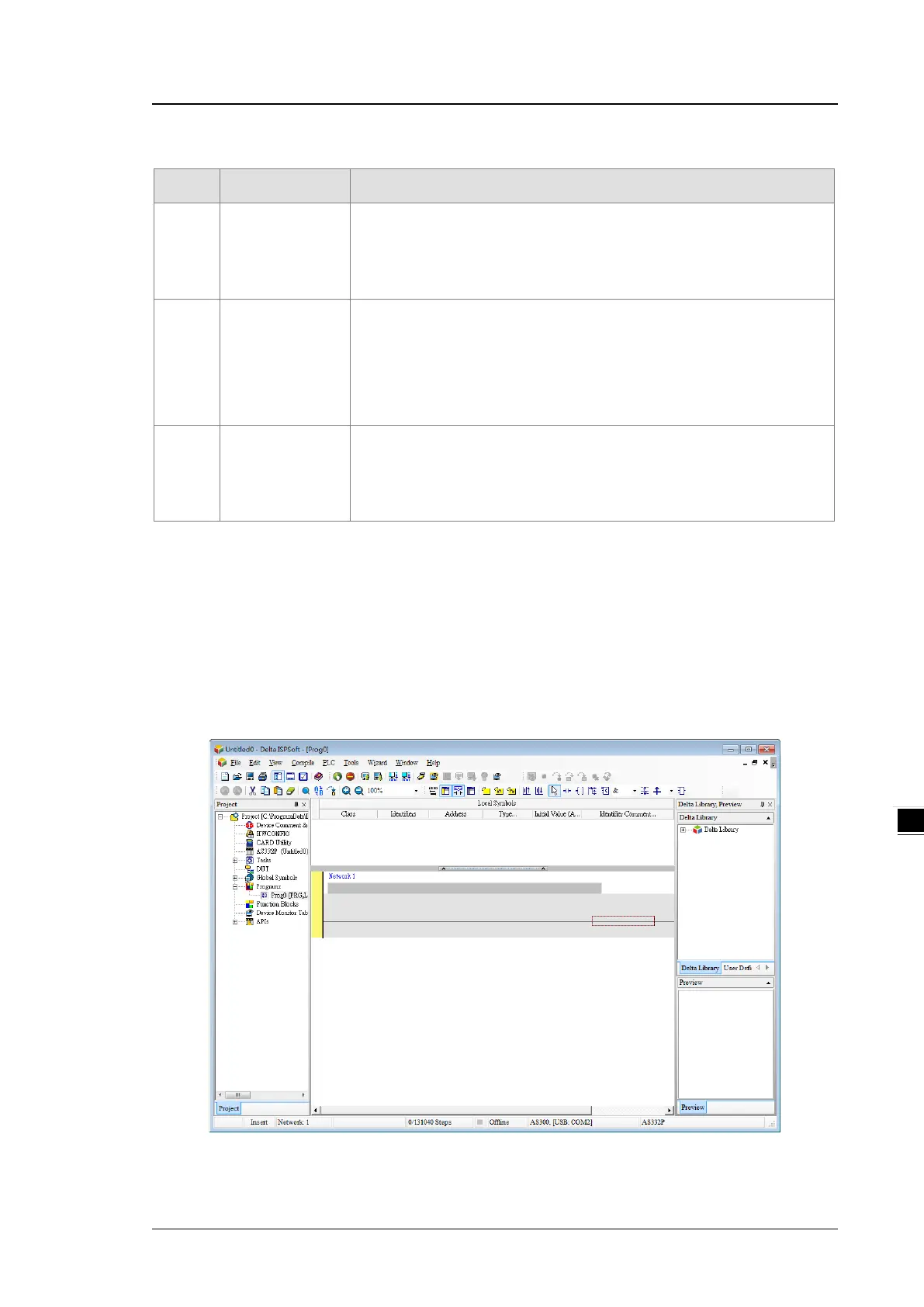

7.2.9 LED Indicators
Number Name Description
1 RUN LED Indicator
Operating status of the module
ON: the module is running.
OFF: the module is not running.
2
ERROR LED
Indicator
Error status of the module
ON: a serious error exists in the module.
OFF: the module is operating normally.
Blink: a minor error exists in the module.
3
Analog-to-Digital
Conversion
Indicator
Conversion status
Blinking: conversion is in process.
OFF: conversion has stopped.
7.3 HWCONFIG in ISPSoft
7.3.1 Initial Setting
The following uses AS04TC-A as an example to demonstrate.
(1) Start ISPSoft and double-click HWCONFIG.
