Delta AS Series Manual

AS Series Module Manual
10-54
10

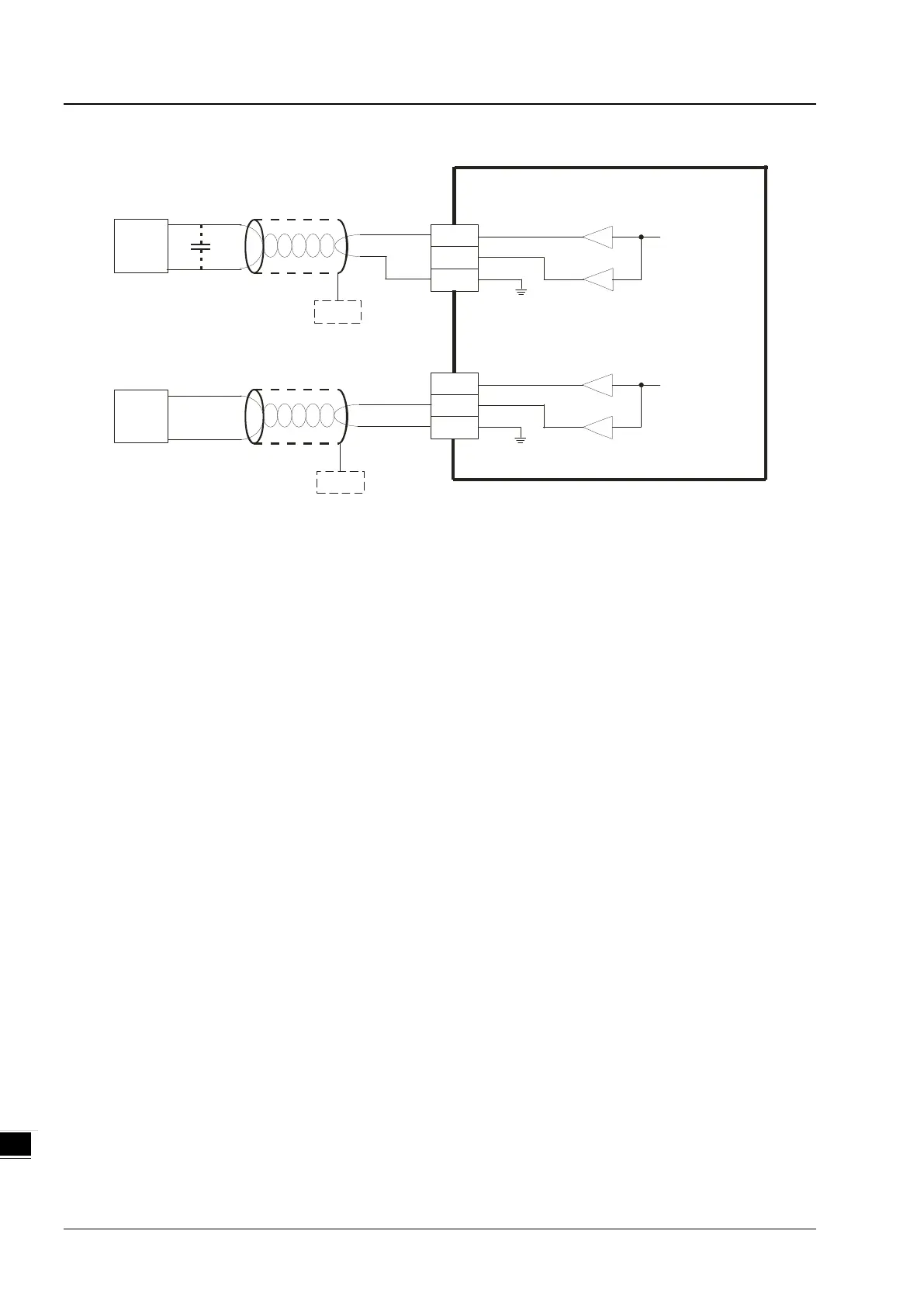

10.4.2 AS-F2DA
VO2
IO2
CHX
4mA ~20mA
CH2
AG
VO1
IO1
COM
CHX
Shiel de d cable *1
0V~+10V
*2
CH1
AG
FE
*3
*4
*4
FE
*3
COM
AC motor driv e,
recorder,
propor tioning v al ve
AC motor driv e,
recorder,
propor tioning v al ve
Vol tage output
Current o utput
Shiel de d cable *1
*1. Use shielded cables to isolate the analog input signal cable from other power cables.
*2. If variability in the input voltage results in interference within the wiring, connect the module to a capacitor having a
capacitance in the range of 0.1–0.47 μF and a working voltage of 25 V.
*3. Connect the shielded cable to the terminal FE.
*4. The wording “CHX” indicates that you can use the two wiring methods listed above for every input channel.
