Chapter 10 Function Cards

10-31

Status Register

(Siemens S7-1500)

Name Description

%IW2

Error Code

For AS00SCM-A

%IW4 - %IW18 For Slot 2 to slot 9

The unit for the address series is byte. The data size for each status register is one word; the indication is %IW0 (%IB0 &

%IB1) and %IW2 (%IB2 & %IB3) and so forth.

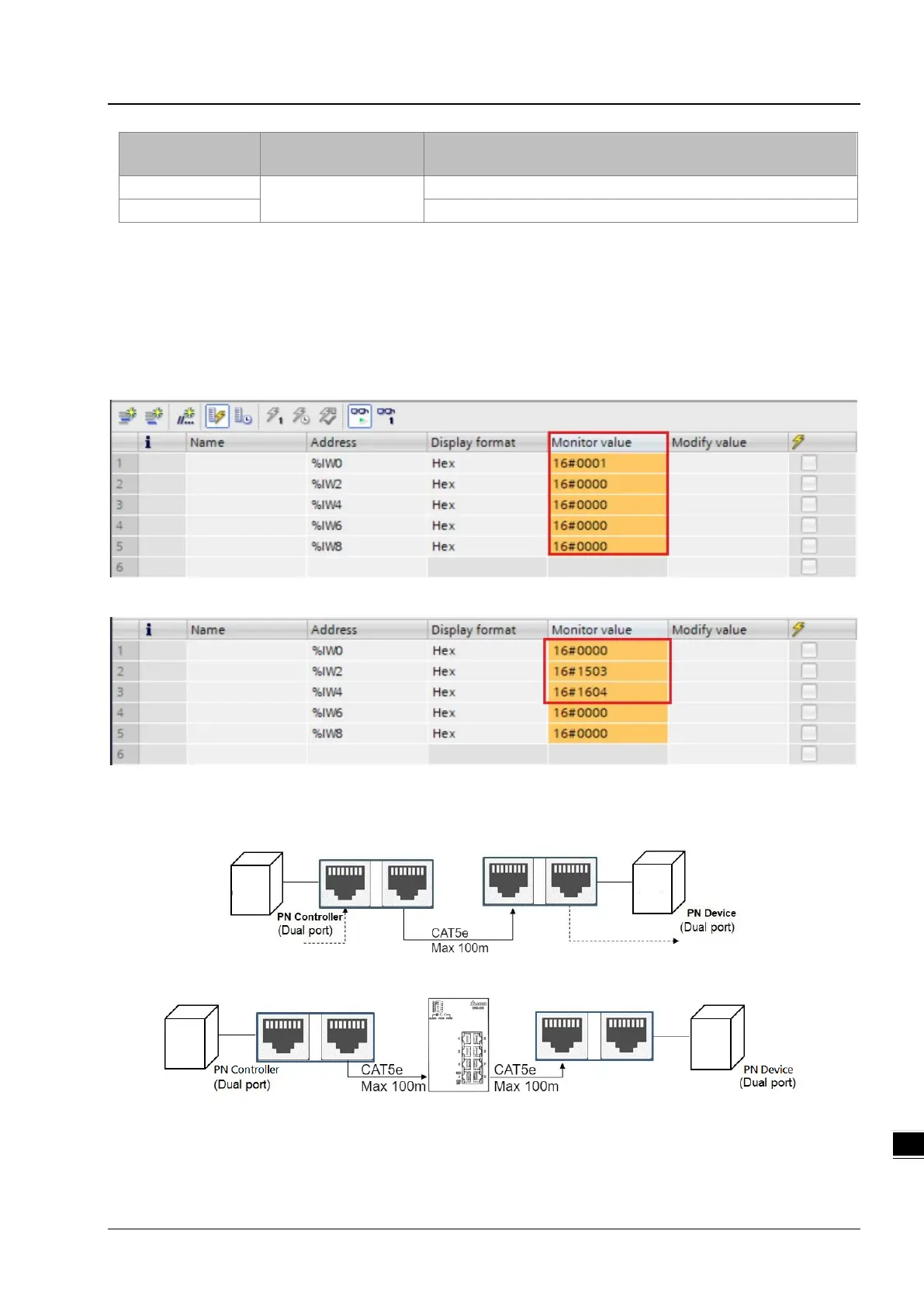

See the example below:

AS00SCM-A is working normally.

AS00SCM-A is working abnormally. Errors occur on its right side modules.

10.2.8.9 Topology

 Linear Topology

 Star Topology
