Delta AS Series Manual

AS Series Module Manual
14-22
14

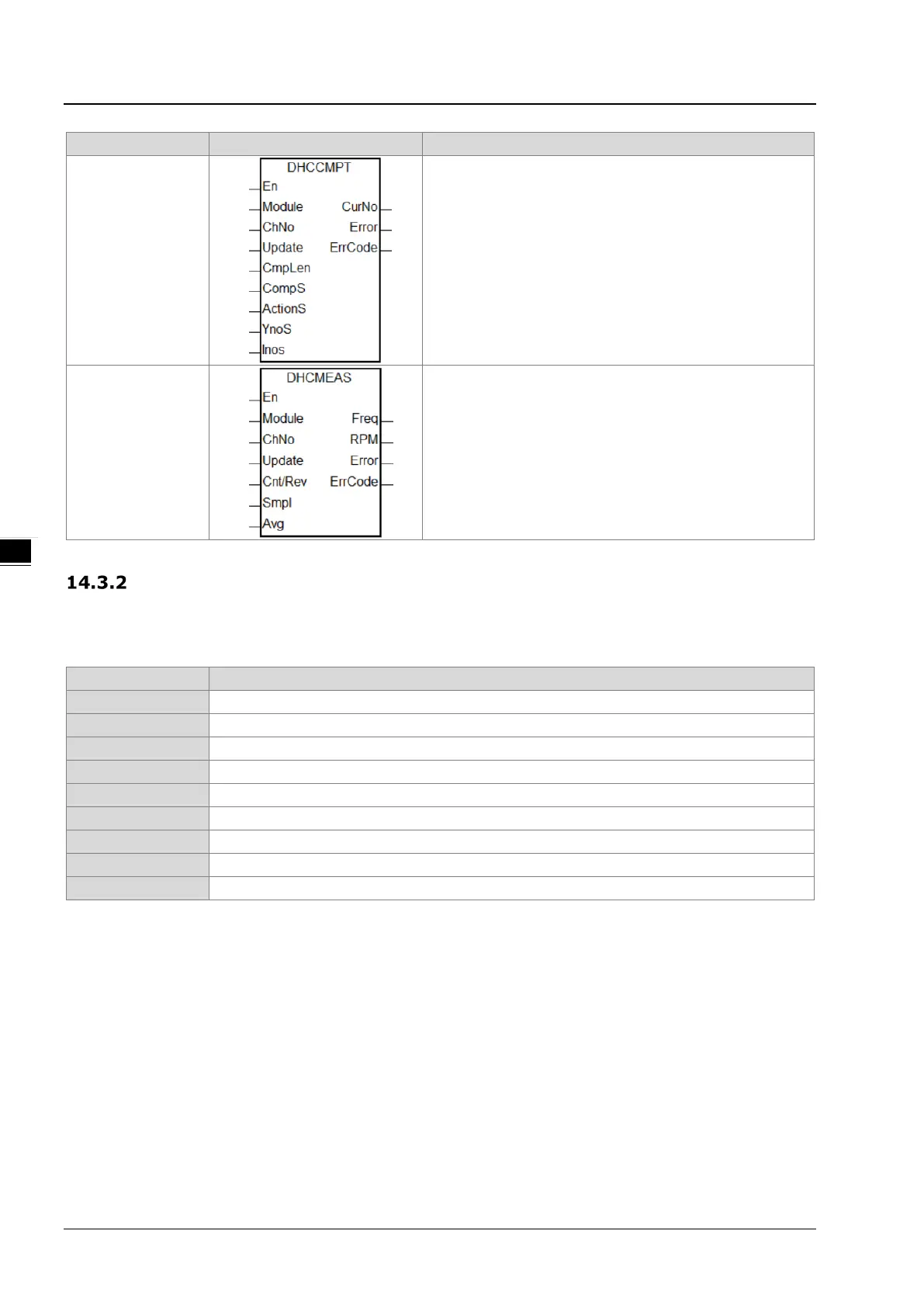

Instruction
Symbol
Function
DHCCMPT
(Table comparison
output)
Enable/disable table comparison output function
Set comparison values for up to ten points
Set comparison-matched action
Show comparison-matched status
DHCMEAS
(Rotation rate
measurement)
Enable/disable measurement function
Set average times
Show measured frequency
Show measured rotations per minute
The impact of AS CPU Status on AS02HC-A
The following table lists the module execution states corresponding to AS CPU operation states of poweroff, and Run ->
Stop. After the AS CPU state switches from Stop to Run, the operation state of AS02HC-A module is controlled by the PLC
program.
Item
Poweroff, CPU Run -> Stop
Y0.0~Y0.3
Reset to OFF
Phase Z
Disabled
Counter
The counting stops and counter state is cleared.
DHCCNT
The instruction is disabled.
HCDO
The instruction is disabled.
DHCCAP
The instruction is disabled.
DHCCMP
The instruction is disabled; MATCH1 and MATCH2 are cleared.
DHCCMPT
The instruction is disabled and CurNo is cleared.
DHCMEAS
The instruction is disabled.

Delta AS Series Specifications

General

Series	AS Series
Power Supply	24VDC
Cooling Method	Natural convection
Programming Language	Function Block Diagram (FBD)
Communication Interface	Ethernet, RS-232, RS-485
Output Voltage	24V DC
Output Current	2A
Operating Temperature	55°C
Storage Temperature	70°C
Protection Features	Overvoltage
Certifications	CE, UL
