Chapter 10 Function Cards

10-53

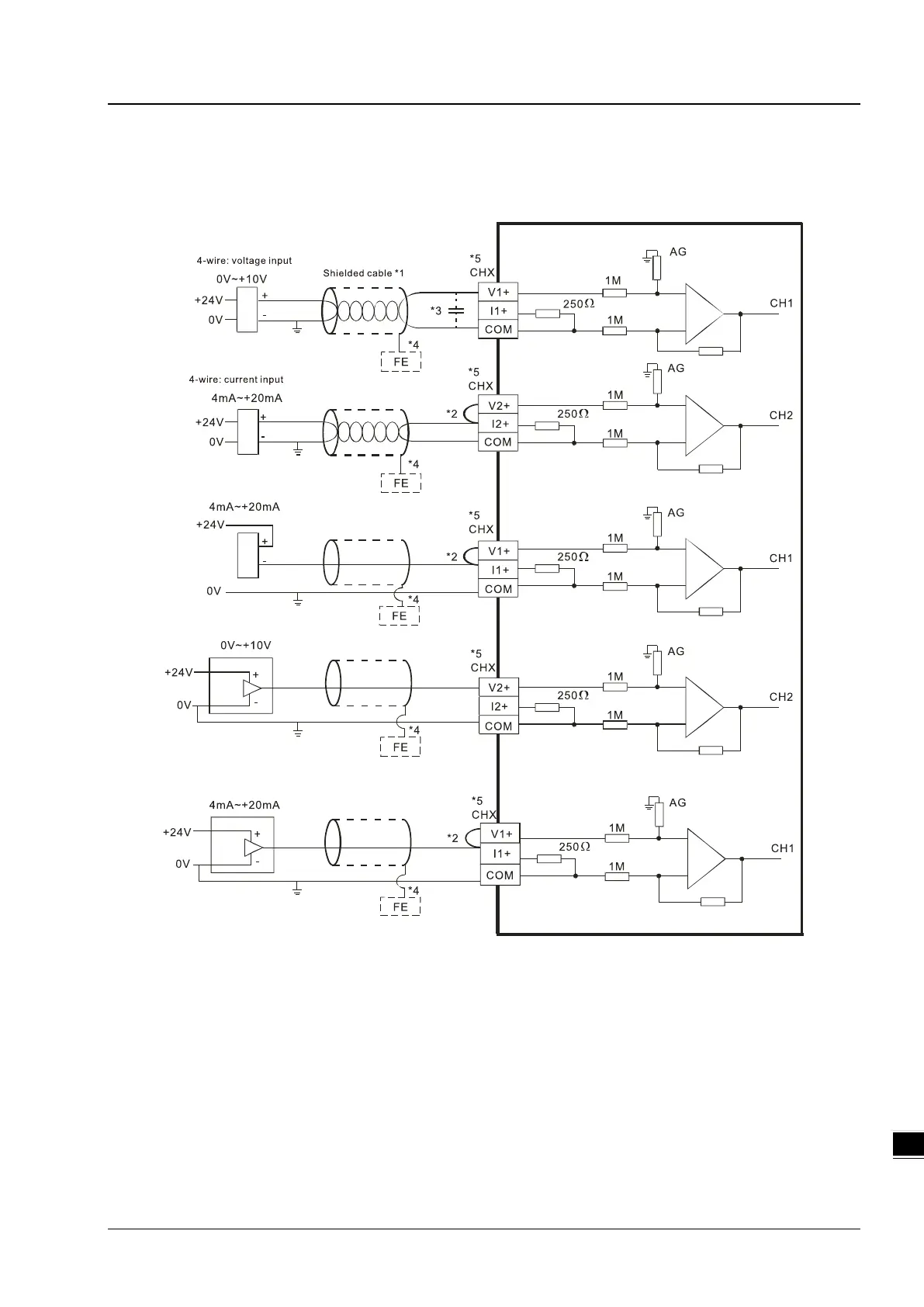

10.4 Wiring

10.4.1 AS-F2AD

Shielded cable *1

2-wi re: c urre nt i nput

3-wire: v oltage in put

Shielded cable *1

3-wire: c urrent i np ut

*1. Use shielded cables to isolate the analog input signal cable from other power cables.

*2. If the module is connected to a current signal, the terminals Vn and In+ (n=1–2) must be short-circuited.

*3. If variability in the input voltage results in interference within the wiring, connect the module to a capacitor having a

capacitance in the range of 0.1–0.47 μF and a working voltage of 25 V.

*4. Connect the shielded cable to the terminal FE.

*5. The wording “CHX” indicates that you can use the five wiring methods listed above for every input channel.
