AS Series Module Manual

1- 8

1.3 Installation

1.3.1 Installing a Module

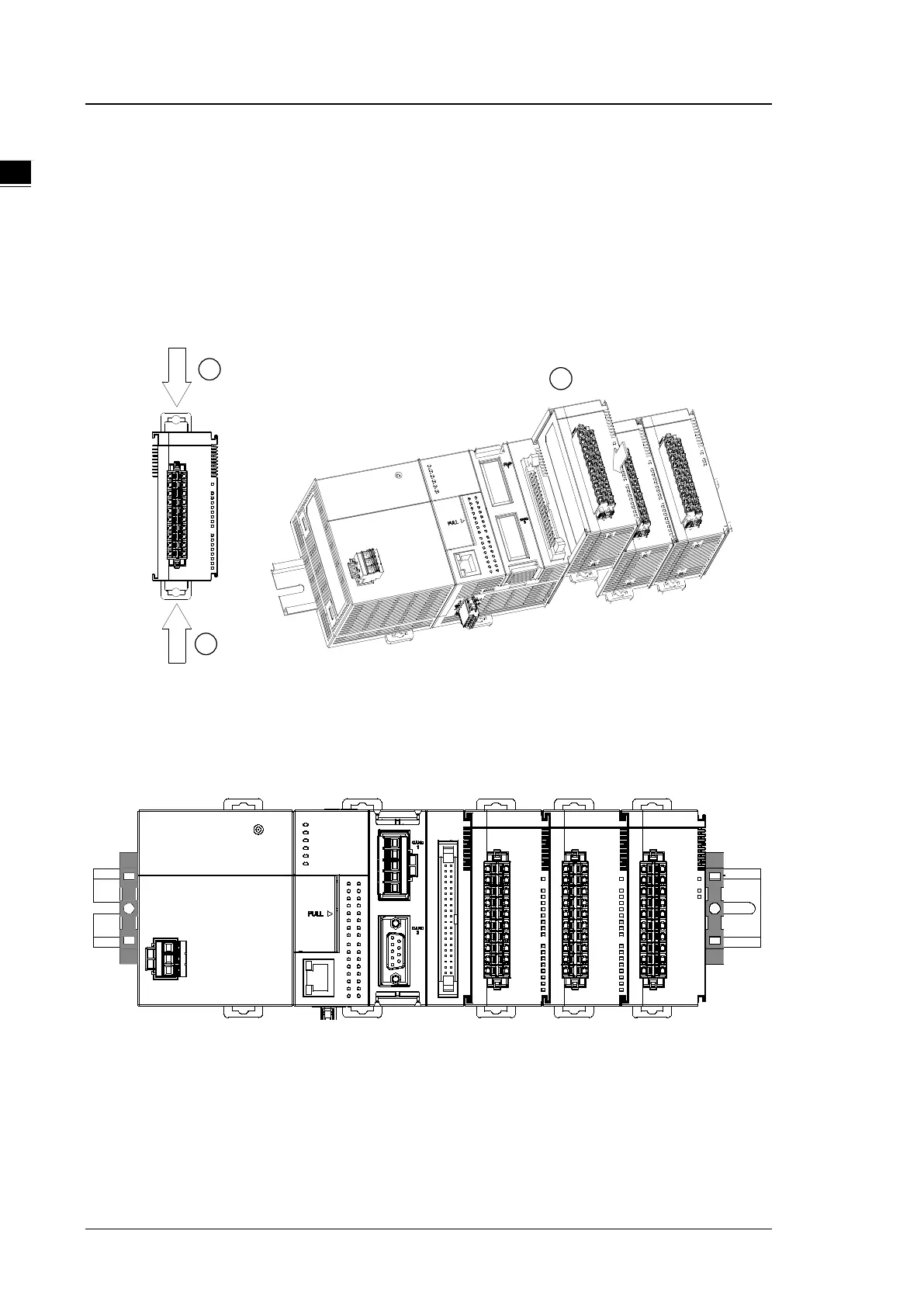

Press the clip rings if they are out as the image 1 shown. Push the module to the desire position

until you hear a click to finish installation.

2. Link the I/O modules on the right side of the PLC and make sure they are hooked together. Push the

modules into the DIN rail until you hear a click.

3. After you installed the module, fasten the screws on the modules to secure the module on the DIN rail.

If there is a vibration source near the installation site, install anti-vibration baffles on the sides of the AS Series

modules for better stabilization, such as the gray baffles show below.
