12.3.5. Parameters

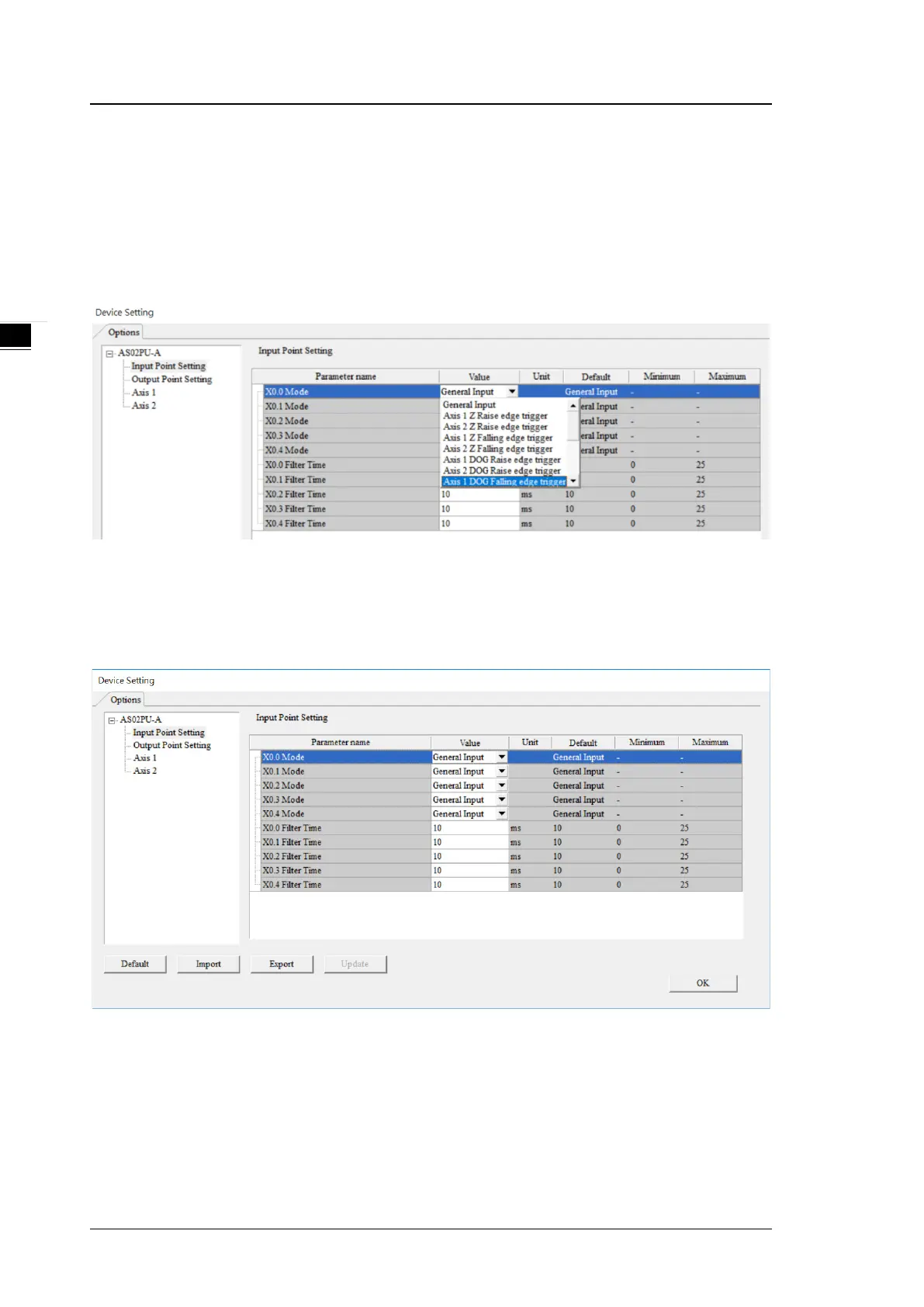

 The input point settings
You can set values in the input points as the triggering conditions (phase Z, DOG, LSN, LSP) for the
axis1 and axis 2 to position. Rising-edge and falling-edge can also be specified in the triggering
conditions.
 Filter time settings
The default setting is 10 ms; the system filters out distortion and noises in a pulse width modulated
transmission that is below 10 ms.
