AS Series Module Manual

9- 40

If the AS00SCM-A functions as a Modbus slave, you need to set a slave ID and baud rate.

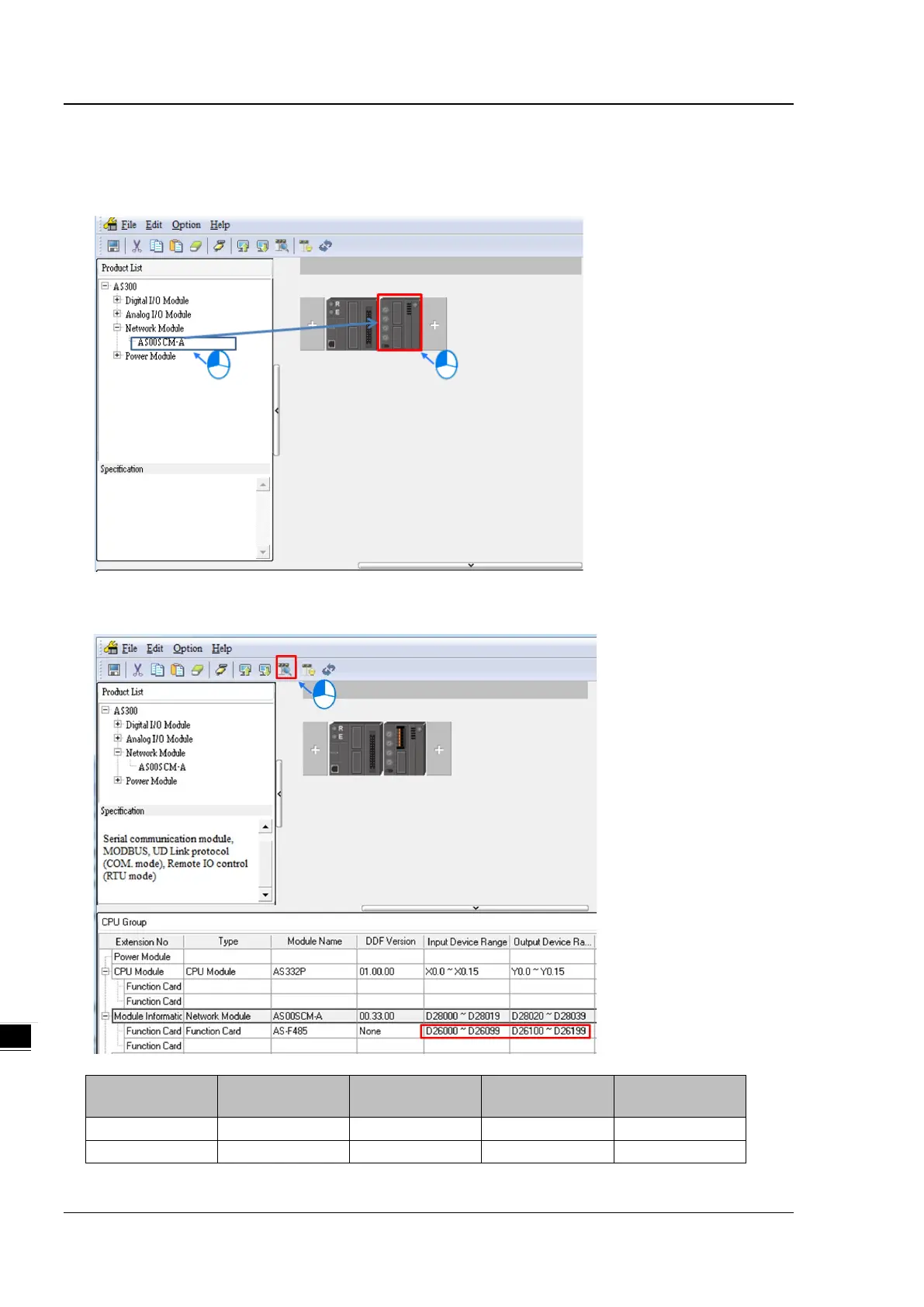

1) Drag to add AS00SCM-A in the system configuration area. Make sure the knob of AS00SCM-A is turned to COM

mode and no power connected to it.

2) Click the I/O Scan button to make the system read the module’s current configuration. The PLC assigns the input

and output device ranges.

Function card

Device from which

data is read

CPU module

Device into which

data is written

CPU module

Function card 1

16#0000

D26000

16#0100

D26100

Function card 2

16#0200

D26200

16#0300

D26300
