Delta AS Series Manual

Chapter 2 Digital Input/Output Modules
2- 9
2
_

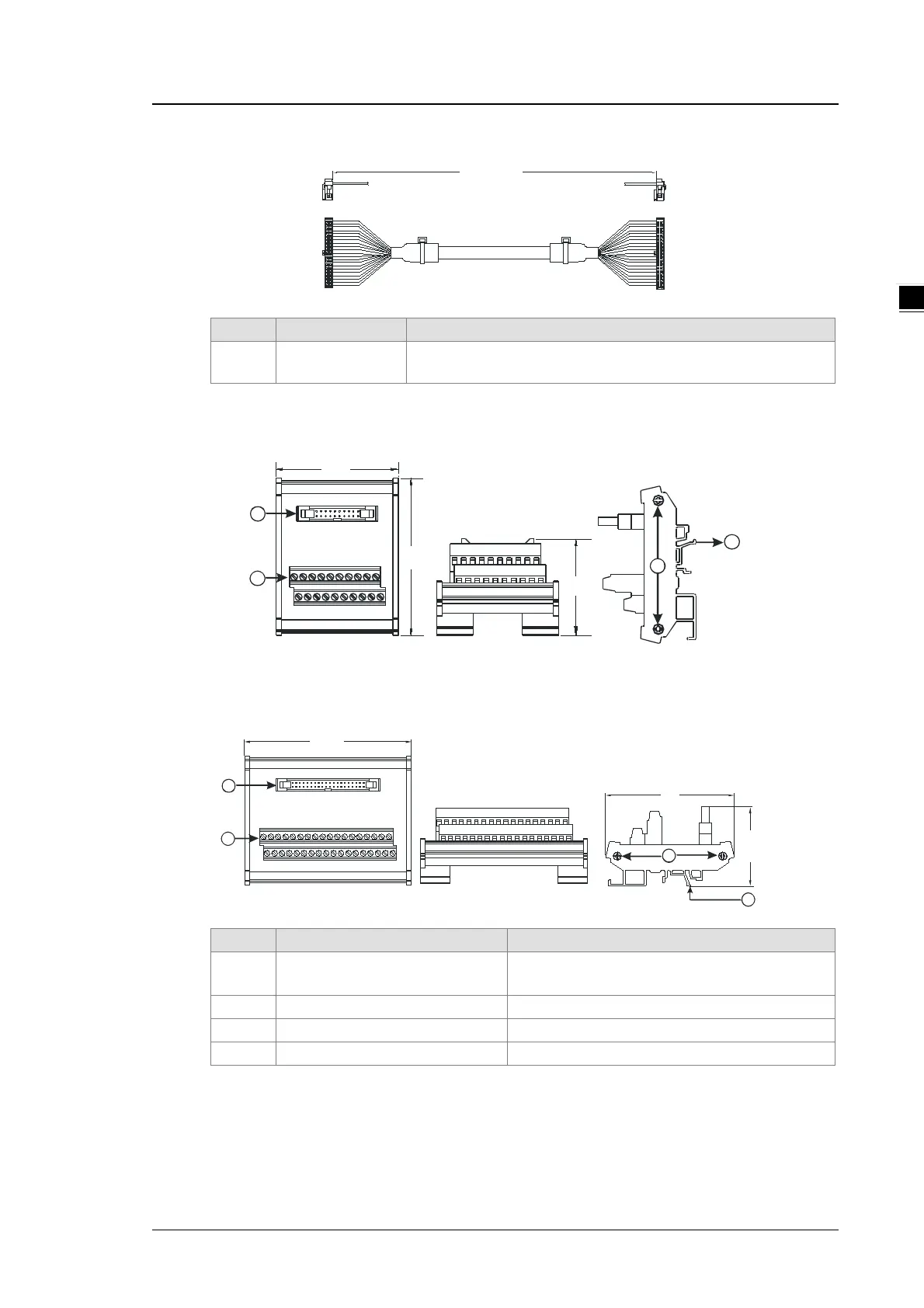

2. I/O connecting cables UC-ET010-24B (1M) / UC-ET020-24B (2M) / UC-ET030-24B (3M)
Length
39 40
39 40
1 2
1 2
Number
Name
Description
1 IDC 40-
pin terminal
Connects an external terminal module and a wiring module UB-10-
ID32A, and UB-10-OT32A
3. AS32AM10N-A/AS64AM10N-A and the external terminal modules UB-10-ID16A, UB-10-ID32A
 UB-10-ID16A
67.0
87.0
53.6
2
1
3
4
Unit: mm
 UB-10-ID32A
113
87
53.6
3
2
1
4
Unit: mm
Number
Name
Description
1
UB-10-ID16A: 20-pin ML connector
UB-10-ID32A: 40-pin ML connector
Connects the external terminal module and a
wiring module
2
Terminals
Input/Output terminals for wiring
3
Clip
Hangs the external terminal module on a DIN rail
4
Set screw
Fixes the base
